Soldering tips and nozzles | Soldering tips

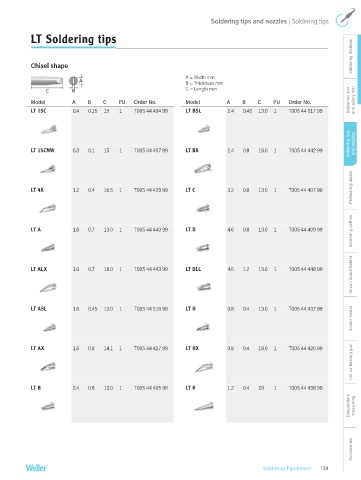

LT Soldering tips
Soldering Stations
Chisel shape
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No. Soldering iron and safety rest
LT 1SC 0.4 0.15 15 1 T005 44 494 99 LT BSL 2.4 0.45 13.0 1 T005 44 517 99
Soldering tips and nozzles
LT 1SCNW 0.3 0.1 15 1 T005 44 497 99 LT BX 2.4 0.8 18.0 1 T005 44 442 99
Preheating plates
LT 4X 1.2 0.4 16.5 1 T005 44 428 99 LT C 3.2 0.8 13.0 1 T005 44 407 99
Soldering bathes
LT A 1.6 0.7 13.0 1 T005 44 440 99 LT D 4.6 0.8 13.0 1 T005 44 409 99
Circuit board holder
LT ALX 1.6 0.7 18.0 1 T005 44 443 99 LT DLL 4.6 1.2 13.0 1 T005 44 448 99
LT ASL 1.6 0.45 13.0 1 T005 44 516 99 LT H 0.8 0.4 13.0 1 T005 44 437 99
Solder feeder
Hot air heating gun
LT AX 1.6 0.8 14.1 1 T005 44 427 99 LT HX 0.8 0.4 18.0 1 T005 44 420 99
LT B 2.4 0.8 13.0 1 T005 44 405 99 LT K 1.2 0.4 20 1 T005 44 438 99
Temperature measuring
Accessories
Soldering Equipment 139
