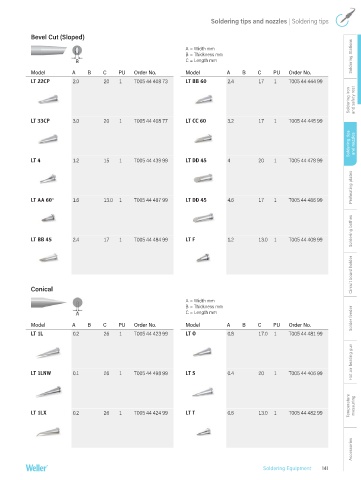

Soldering tips and nozzles | Soldering tips
Bevel Cut (Sloped)
A = Width mm
B = Thickness mm Soldering Stations
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
LT 22CP 2.0 20 1 T005 44 408 73 LT BB 60 2.4 17 1 T005 44 444 99
Soldering iron and safety rest
LT 33CP 3.0 20 1 T005 44 408 77 LT CC 60 3.2 17 1 T005 44 445 99
Soldering tips and nozzles
LT 4 1.2 15 1 T005 44 439 99 LT DD 45 4 20 1 T005 44 478 99
Preheating plates
LT AA 60° 1.6 13.0 1 T005 44 487 99 LT DD 45 4.6 17 1 T005 44 486 99
Soldering bathes
LT BB 45 2.4 17 1 T005 44 484 99 LT F 1.2 13.0 1 T005 44 408 99
Circuit board holder
Conical
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No. Solder feeder
LT 1L 0.2 26 1 T005 44 423 99 LT O 0.8 17.0 1 T005 44 481 99
Hot air heating gun
LT 1LNW 0.1 26 1 T005 44 498 99 LT S 0.4 20 1 T005 44 406 99
Temperature measuring
LT 1LX 0.2 26 1 T005 44 424 99 LT T 0.6 13.0 1 T005 44 482 99
Accessories
Soldering Equipment 141
