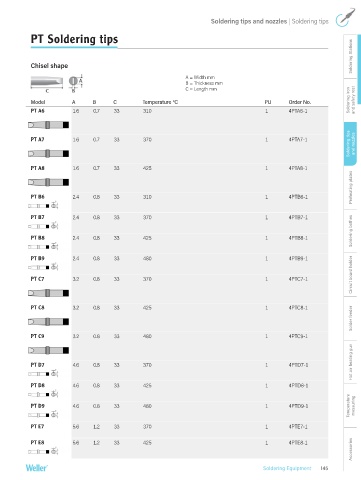

Page 145 - weller

Soldering tips and nozzles | Soldering tips

PT Soldering tips
Soldering Stations

Chisel shape

A = Width mm
B = Thickness mm
C = Length mm
Model A B C Temperature °C PU Order No. Soldering iron and safety rest
PT A6 1.6 0.7 33 310 1 4PTA6-1

Soldering tips and nozzles
PT A7 1.6 0.7 33 370 1 4PTA7-1

PT A8 1.6 0.7 33 425 1 4PTA8-1
Preheating plates

PT B6 2.4 0.8 33 310 1 4PTB6-1

PT B7 2.4 0.8 33 370 1 4PTB7-1
Soldering bathes

PT B8 2.4 0.8 33 425 1 4PTB8-1

PT B9 2.4 0.8 33 480 1 4PTB9-1
Circuit board holder

PT C7 3.2 0.8 33 370 1 4PTC7-1

PT C8 3.2 0.8 33 425 1 4PTC8-1
Solder feeder

PT C9 3.2 0.8 33 480 1 4PTC9-1

Hot air heating gun

PT D7 4.6 0.8 33 370 1 4PTD7-1

PT D8 4.6 0.8 33 425 1 4PTD8-1

PT D9 4.6 0.8 33 480 1 4PTD9-1 Temperature measuring

PT E7 5.6 1.2 33 370 1 4PTE7-1

Accessories
PT E8 5.6 1.2 33 425 1 4PTE8-1

Soldering Equipment 145
