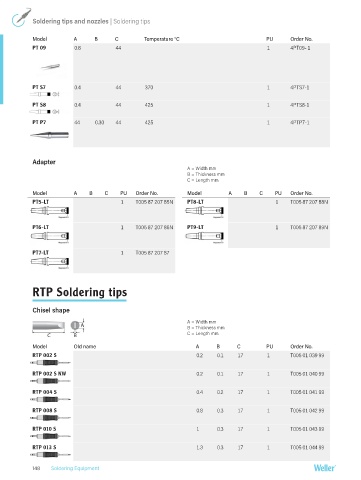

P. 148
Soldering tips and nozzles | Soldering tips
Model A B C Temperature °C PU Order No.
PT 09 0.8 44 1 4PT09- 1
PT S7 0.4 44 370 1 4PTS7-1
PT S8 0.4 44 425 1 4PTS8-1
PT P7 44 0.30 44 425 1 4PTP7-1
Adapter
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
PT5-LT 1 T005 87 207 85N PT8-LT 1 T005 87 207 88N
PT6-LT 1 T005 87 207 86N PT9-LT 1 T005 87 207 89N
PT7-LT 1 T005 87 207 87
RTP Soldering tips
Chisel shape
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTP 002 S 0.2 0.1 17 1 T005 01 039 99
RTP 002 S NW 0.2 0.1 17 1 T005 01 040 99
RTP 004 S 0.4 0.2 17 1 T005 01 041 99
RTP 008 S 0.8 0.3 17 1 T005 01 042 99
RTP 010 S 1 0.3 17 1 T005 01 043 99
RTP 013 S 1.3 0.3 17 1 T005 01 044 99
148 Soldering Equipment
