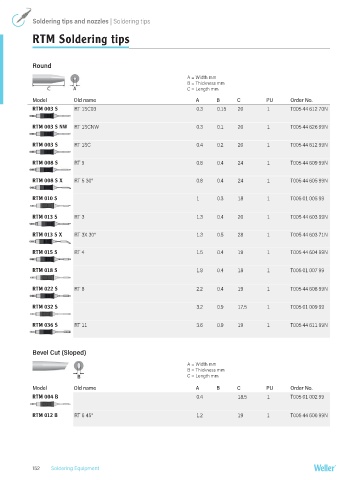

Page 152 - weller
P. 152
Soldering tips and nozzles | Soldering tips
RTM Soldering tips
Round
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTM 003 S RT 1SC03 0.3 0.15 20 1 T005 44 612 70N
RTM 003 S NW RT 1SCNW 0.3 0.1 20 1 T005 44 626 99N
RTM 003 S RT 1SC 0.4 0.2 20 1 T005 44 612 99N
RTM 008 S RT 9 0.8 0.4 24 1 T005 44 609 99N
RTM 008 S X RT 5 30° 0.8 0.4 24 1 T005 44 605 99N
RTM 010 S 1 0.3 18 1 T005 01 005 99
RTM 013 S RT 3 1.3 0.4 20 1 T005 44 603 99N
RTM 013 S X RT 3X 30° 1.3 0.5 28 1 T005 44 603 71N
RTM 015 S RT 4 1.5 0.4 19 1 T005 44 604 99N
RTM 018 S 1.8 0.4 18 1 T005 01 007 99
RTM 022 S RT 8 2.2 0.4 19 1 T005 44 608 99N
RTM 032 S 3.2 0.9 17.5 1 T005 01 009 99
RTM 036 S RT 11 3.6 0.9 19 1 T005 44 611 99N
Bevel Cut (Sloped)
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTM 004 B 0.4 18.5 1 T005 01 002 99
RTM 012 B RT 6 45° 1.2 19 1 T005 44 606 99N
152 Soldering Equipment
