Soldering tips and nozzles | Soldering tips

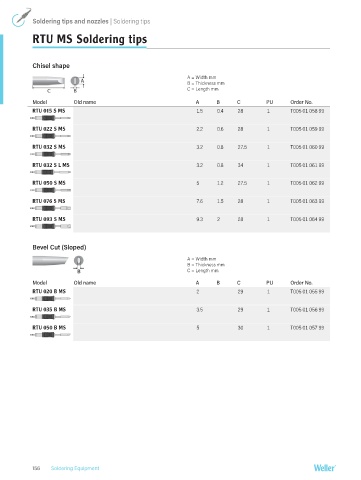

RTU MS Soldering tips
Chisel shape
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTU 015 S MS 1.5 0.4 28 1 T005 01 058 99
RTU 022 S MS 2.2 0.6 28 1 T005 01 059 99
RTU 032 S MS 3.2 0.8 27.5 1 T005 01 060 99
RTU 032 S L MS 3.2 0.8 34 1 T005 01 061 99
RTU 050 S MS 5 1.2 27.5 1 T005 01 062 99
RTU 076 S MS 7.6 1.5 28 1 T005 01 063 99
RTU 093 S MS 9.3 2 28 1 T005 01 064 99
Bevel Cut (Sloped)
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTU 020 B MS 2 29 1 T005 01 055 99
RTU 035 B MS 3.5 29 1 T005 01 056 99
RTU 050 B MS 5 30 1 T005 01 057 99
156 Soldering Equipment
