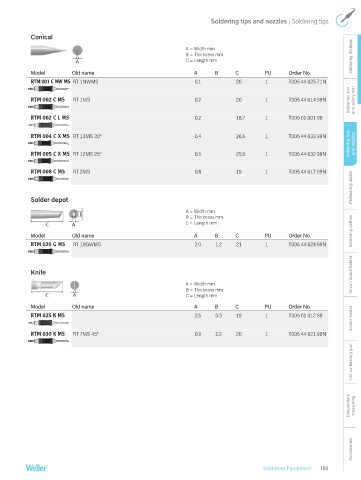

Page 155 - weller

Soldering tips and nozzles | Soldering tips

Conical
A = Width mm
B = Thickness mm Soldering Stations
C = Length mm
Model Old name A B C PU Order No.
RTM 001 C NW MS RT 1NWMS 0.1 20 1 T005 44 625 71N
Soldering iron and safety rest

RTM 002 C MS RT 1MS 0.2 20 1 T005 44 614 99N

RTM 002 C L MS 0.2 18.7 1 T005 01 001 99
Soldering tips and nozzles
RTM 004 C X MS RT 13MS 30° 0.4 26.5 1 T005 44 633 99N

RTM 005 C X MS RT 12MS 25° 0.5 25.5 1 T005 44 632 99N

RTM 008 C MS RT 2MS 0.8 19 1 T005 44 617 99N
Preheating plates

Solder depot

A = Width mm
B = Thickness mm
C = Length mm

Model Old name A B C PU Order No. Soldering bathes
RTM 020 G MS RT 10GWMS 2.0 1.2 21 1 T005 44 624 99N

Knife Circuit board holder

A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
Solder feeder
RTM 025 K MS 2.5 0.3 19 1 T005 01 012 99

RTM 030 K MS RT 7MS 45° 0.9 2.2 20 1 T005 44 621 99N

Hot air heating gun

Temperature measuring

Accessories

Soldering Equipment 155
