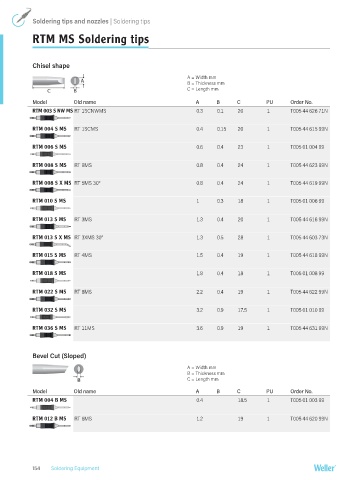

P. 154
Soldering tips and nozzles | Soldering tips
RTM MS Soldering tips
Chisel shape
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTM 003 S NW MS RT 1SCNWMS 0.3 0.1 20 1 T005 44 626 71N
RTM 004 S MS RT 1SCMS 0.4 0.15 20 1 T005 44 615 99N
RTM 006 S MS 0.6 0.4 23 1 T005 01 004 99
RTM 008 S MS RT 9MS 0.8 0.4 24 1 T005 44 623 99N
RTM 008 S X MS RT 5MS 30° 0.8 0.4 24 1 T005 44 619 99N
RTM 010 S MS 1 0.3 18 1 T005 01 006 99
RTM 013 S MS RT 3MS 1.3 0.4 20 1 T005 44 616 99N
RTM 013 S X MS RT 3XMS 30° 1.3 0.5 28 1 T005 44 603 73N
RTM 015 S MS RT 4MS 1.5 0.4 19 1 T005 44 618 99N
RTM 018 S MS 1.8 0.4 18 1 T005 01 008 99
RTM 022 S MS RT 8MS 2.2 0.4 19 1 T005 44 622 99N
RTM 032 S MS 3.2 0.9 17.5 1 T005 01 010 99
RTM 036 S MS RT 11MS 3.6 0.9 19 1 T005 44 631 99N
Bevel Cut (Sloped)
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTM 004 B MS 0.4 18.5 1 T005 01 003 99
RTM 012 B MS RT 6MS 1.2 19 1 T005 44 620 99N
154 Soldering Equipment
