P. 150
Soldering tips and nozzles | Soldering tips

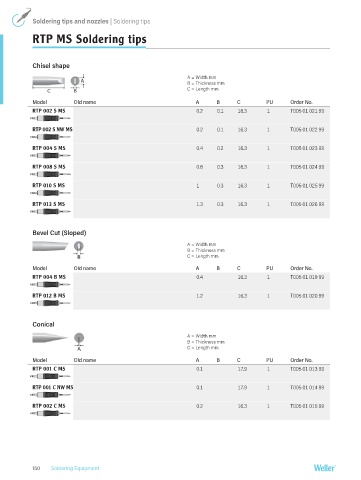

RTP MS Soldering tips
Chisel shape
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTP 002 S MS 0.2 0.1 16.3 1 T005 01 021 99
RTP 002 S NW MS 0.2 0.1 16.3 1 T005 01 022 99
RTP 004 S MS 0.4 0.2 16.3 1 T005 01 023 99
RTP 008 S MS 0.8 0.3 16.3 1 T005 01 024 99
RTP 010 S MS 1 0.3 16.3 1 T005 01 025 99
RTP 013 S MS 1.3 0.3 16.3 1 T005 01 026 99
Bevel Cut (Sloped)
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTP 004 B MS 0.4 16.3 1 T005 01 019 99
RTP 012 B MS 1.2 16.3 1 T005 01 020 99
Conical
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
RTP 001 C MS 0.1 17.9 1 T005 01 013 99
RTP 001 C NW MS 0.1 17.9 1 T005 01 014 99
RTP 002 C MS 0.2 16.3 1 T005 01 015 99
150 Soldering Equipment
