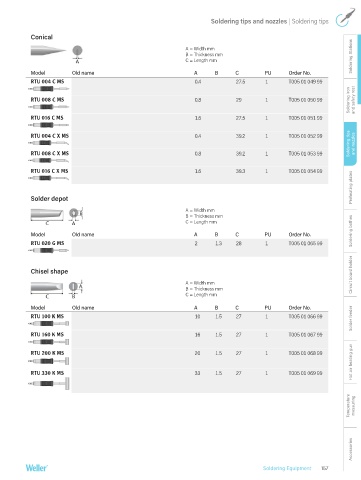

P. 157
Soldering tips and nozzles | Soldering tips
Conical
A = Width mm
B = Thickness mm Soldering Stations
C = Length mm
Model Old name A B C PU Order No.
RTU 004 C MS 0.4 27.5 1 T005 01 049 99
Soldering iron and safety rest
RTU 008 C MS 0.8 29 1 T005 01 050 99
RTU 016 C MS 1.6 27.5 1 T005 01 051 99
Soldering tips and nozzles
RTU 004 C X MS 0.4 39.2 1 T005 01 052 99
RTU 008 C X MS 0.8 39.2 1 T005 01 053 99
RTU 016 C X MS 1.6 39.3 1 T005 01 054 99
Preheating plates
Solder depot
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No. Soldering bathes
RTU 020 G MS 2 1.3 28 1 T005 01 065 99
Chisel shape Circuit board holder
A = Width mm
B = Thickness mm
C = Length mm
Model Old name A B C PU Order No.
Solder feeder
RTU 100 K MS 10 1.5 27 1 T005 01 066 99
RTU 160 K MS 16 1.5 27 1 T005 01 067 99
Hot air heating gun
RTU 200 K MS 20 1.5 27 1 T005 01 068 99
RTU 330 K MS 33 1.5 27 1 T005 01 069 99
Temperature measuring
Accessories
Soldering Equipment 157
