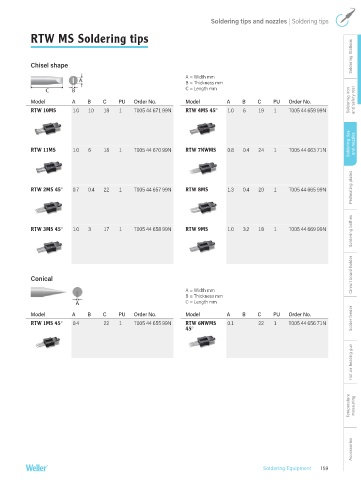

Page 159 - weller

Soldering tips and nozzles | Soldering tips

RTW MS Soldering tips
Soldering Stations

Chisel shape

A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No. Soldering iron and safety rest
RTW 10MS 1.0 10 18 1 T005 44 671 99N RTW 4MS 45° 1.0 6 19 1 T005 44 659 99N

Soldering tips and nozzles

RTW 11MS 1.0 6 18 1 T005 44 670 99N RTW 7NWMS 0.8 0.4 24 1 T005 44 663 71N

Preheating plates

RTW 2MS 45° 0.7 0.4 22 1 T005 44 657 99N RTW 8MS 1.3 0.4 20 1 T005 44 665 99N

Soldering bathes
RTW 3MS 45° 1.0 3 17 1 T005 44 658 99N RTW 9MS 1.0 3.2 18 1 T005 44 669 99N

Circuit board holder

Conical

A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
RTW 1MS 45° 0.4 22 1 T005 44 655 99N RTW 6NWMS 0.1 22 1 T005 44 656 71N Solder feeder
45°

Hot air heating gun

Temperature measuring

Accessories

Soldering Equipment 159
