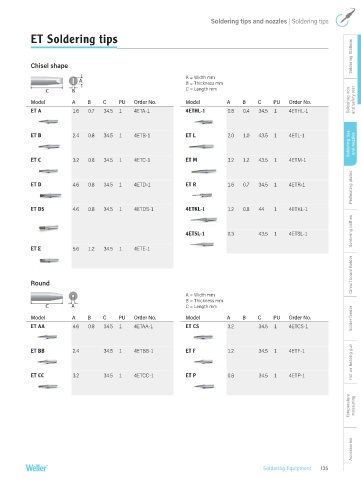

ET Soldering tips
Soldering Stations

Chisel shape

A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No. Soldering iron and safety rest
ET A 1.6 0.7 34.5 1 4ETA-1 4ETHL-1 0.8 0.4 34.5 1 4ETHL-1

Soldering tips and nozzles
ET B 2.4 0.8 34.5 1 4ETB-1 ET L 2.0 1.0 43.5 1 4ETL-1

ET C 3.2 0.8 34.5 1 4ETC-1 ET M 3.2 1.2 43.5 1 4ETM-1

Preheating plates
ET D 4.6 0.8 34.5 1 4ETD-1 ET R 1.6 0.7 34.5 1 4ETR-1

ET DS 4.6 0.8 34.5 1 4ETDS-1 4ETKL-1 1.2 0.8 44 1 4ETKL-1
Soldering bathes

4ETSL-1 0.3 43.5 1 4ETSL-1

ET E 5.6 1.2 34.5 1 4ETE-1

Circuit board holder

Round

A = Width mm
B = Thickness mm
C = Length mm

Model A B C PU Order No. Model A B C PU Order No. Solder feeder
ET AA 4.6 0.8 34.5 1 4ETAA-1 ET CS 3.2 34.5 1 4ETCS-1

Hot air heating gun
ET BB 2.4 34.5 1 4ETBB-1 ET F 1.2 34.5 1 4ETF-1

ET CC 3.2 34.5 1 4ETCC-1 ET P 0.8 34.5 1 4ETP-1

Temperature measuring

Accessories

Soldering Equipment 135
