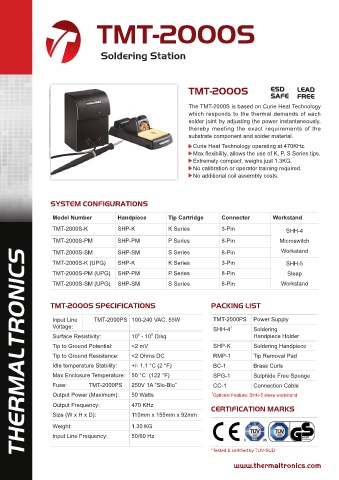

TMT-2000S

Soldering Station

TMT-2000S ESD LEAD
ESD
LEAD
SAFE
FREE
SAFE
FREE
The TMT-2000S is based on Curie Heat Technology
which responds to the thermal demands of each
solder joint by adjusting the power instantaneously,
thereby meeting the exact requirements of the
substrate component and solder material.
Curie Heat Technology operating at 470KHz.
Max flexibility, allows the use of K, P, S Series tips.
Extremely compact, weighs just 1.3KG.
No calibration or operator training required.
No additional coil assembly costs.

SYSTEM CONFIGURATIONS

Model Number Handpiece Tip Cartridge Connector Workstand
TMT-2000S-K SHP-K K Series 3-Pin SHH-4

TMT-2000S-PM SHP-PM P Series 8-Pin Microswitch
TMT-2000S-SM SHP-SM S Series 8-Pin Workstand

TMT-2000S-K (UPG) SHP-K K Series 3-Pin SHH-5
TMT-2000S-PM (UPG) SHP-PM P Series 8-Pin Sleep
TMT-2000S-SM (UPG) SHP-SM S Series 8-Pin Workstand

TMT-2000S SPECIFICATIONS PACKING LIST

Input Line TMT-2000PS 100-240 VAC, 55W TMT-2000PS Power Supply
Voltage: SHH-4 1 Soldering
Surface Resistivity: 10 - 10 Ω/sq Handpiece Holder
5
9
Tip to Ground Potential: <2 mV SHP-K Soldering Handpiece
Tip to Ground Resistance: <2 Ohms DC RMP-1 Tip Removal Pad
Idle temperature Stability: +/- 1.1 °C (2 °F) BC-1 Brass Curls
Max Enclosure Temperature: 50 °C (122 °F) SPG-1 Sulphide Free Sponge

Fuse: TMT-2000PS 250V 1A “Slo-Blo” CC-1 Connection Cable
Output Power (Maximum): 50 Watts 1 Optional Feature: SHH-5 sleep workstand
Output Frequency: 470 KHz CERTIFICATION MARKS
Size (W x H x D): 110mm x 155mm x 92mm

Weight: 1.30 KG
Input Line Frequency: 50/60 Hz

*Tested & certified by TUV-SUD
