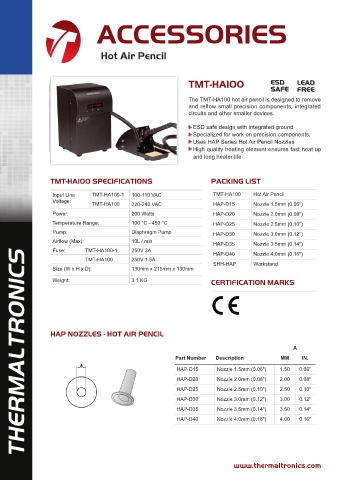

Page 12 - Thermaltronics

ACCESSORIES

Hot Air Pencil

TMT-HA100 ESD LEAD
ESD
LEAD
SAFE
FREE
SAFE
FREE
The TMT-HA100 hot air pencil is designed to remove
and reflow small precision components, integrated
circuits and other smaller devices.
ESD safe design with integrated ground
Specialized for work on precision components.
Uses HAP Series Hot Air Pencil Nozzles
High quality heating element ensures fast heat up
and long heater life

TMT-HA100 SPECIFICATIONS PACKING LIST

Input Line TMT-HA100-1 100-110 VAC TMT-HA100 Hot Air Pencil
Voltage:
TMT-HA100 220-240 VAC HAP-D15 Nozzle 1.5mm (0.06")
Power: 200 Watts HAP-D20 Nozzle 2.0mm (0.08")
Temperature Range: 100 °C - 450 °C HAP-D25 Nozzle 2.5mm (0.10")
Pump: Diaphragm Pump HAP-D30 Nozzle 3.0mm (0.12")
Airflow (Max): 10L / min
HAP-D35 Nozzle 3.5mm (0.14")
Fuse: TMT-HA100-1 250V 3A
HAP-D40 Nozzle 4.0mm (0.16")
TMT-HA100 250V 1.5A
SHH-HAP Workstand
Size (W x H x D): 130mm x 215mm x 130mm

Weight: 3.1 KG CERTIFICATION MARKS

HAP NOZZLES - HOT AIR PENCIL

A
Part Number Description MM IN.
HAP-D15 Nozzle 1.5mm (0.06") 1.50 0.06"
HAP-D20 Nozzle 2.0mm (0.08") 2.00 0.08"
HAP-D25 Nozzle 2.5mm (0.10") 2.50 0.10"

HAP-D30 Nozzle 3.0mm (0.12") 3.00 0.12"
HAP-D35 Nozzle 3.5mm (0.14") 3.50 0.14"
HAP-D40 Nozzle 4.0mm (0.16") 4.00 0.16"
