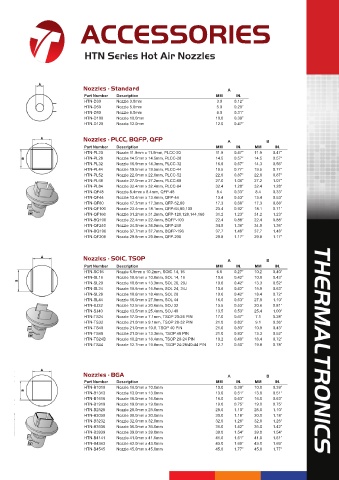

Page 15 - Thermaltronics

ACCESSORIES

HTN Series Hot Air Nozzles

Nozzles - Standard A
Part Number Description MM IN.
HTN-D30 Nozzle 3.0mm 3.0 0.12”
HTN-D50 Nozzle 5.0mm 5.0 0.20”
HTN-D80 Nozzle 8.0mm 8.0 0.31”
HTN-D100 Nozzle 10.0mm 10.0 0.39”
HTN-D120 Nozzle 12.0mm 12.0 0.47”

Nozzles - PLCC, BQFP, QFP A B
Part Number Description MM IN. MM IN.
HTN-PL20 Nozzle 11.9mm x 11.9mm, PLCC-20 11.9 0.47” 11.9 0.47”
HTN-PL28 Nozzle 14.5mm x 14.5mm, PLCC-28 14.5 0.57” 14.5 0.57”
HTN-PL32 Nozzle 16.9mm x 14.3mm, PLCC-32 16.9 0.67” 14.3 0.56”
HTN-PL44 Nozzle 19.5mm x 19.5mm, PLCC-44 19.5 0.77” 19.5 0.77”
HTN-PL52 Nozzle 22.0mm x 22.0mm, PLCC-52 22.0 0.87” 22.0 0.87”
HTN-PL68 Nozzle 27.0mm x 27.2mm, PLCC-68 27.0 1.06” 27.2 1.07”
HTN-PL84 Nozzle 32.4mm x 32.4mm, PLCC-84 32.4 1.28” 32.4 1.28”
HTN-QF48 Nozzle 8.4mm x 8.4mm, QFP-48 8.4 0.33” 8.4 0.33”
HTN-QF44 Nozzle 13.4mm x 13.4mm, QFP-44 13.4 0.53” 13.4 0.53”
HTN-QF80 Nozzle 17.3mm x 17.3mm, QFP-52,80 17.3 0.68” 17.3 0.68”
HTN-QF100 Nozzle 23.4mm x 18.1mm, QFP-64,80,100 23.4 0.92” 18.1 0.71”
HTN-QF160 Nozzle 31.2mm x 31.2mm, QFP-120,128,144,160 31.2 1.23” 31.2 1.23”
HTN-BQ100 Nozzle 22.4mm x 22.4mm, BQFP-100 22.4 0.88” 22.4 0.88”
HTN-QF240 Nozzle 34.5mm x 34.5mm, QFP-240 34.5 1.36” 34.5 1.36”
HTN-BQ196 Nozzle 37.7mm x 37.7mm, BQFP-196 37.7 1.48” 37.7 1.48”
HTN-QF208 Nozzle 29.8mm x 29.8mm, QFP-208 29.8 1.17” 29.8 1.17”

Nozzles - SOIC, TSOP A B
Part Number Description MM IN. MM IN.
HTN-SC16 Nozzle 6.8mm x 10.2mm, SOIC 14, 16 6.8 0.27” 10.2 0.40”
HTN-SL16 Nozzle 10.6mm x 10.8mm, SOL 14, 16 10.6 0.42” 10.8 0.43”
HTN-SL20 Nozzle 10.6mm x 13.3mm, SOL 20, 20J 10.6 0.42” 13.3 0.52”
HTN-SL24 Nozzle 10.6mm x 15.9mm, SOL 24, 24J 10.6 0.42” 15.9 0.63”
HTN-SL28 Nozzle 10.6mm x 18.4mm, SOL 28 10.6 0.42” 18.4 0.72”
HTN-SL44 Nozzle 16.0mm x 27.9mm, SOL 44 16.0 0.63” 27.9 1.10”
HTN-SJ32 Nozzle 13.5mm x 20.6mm, SOJ 32 13.5 0.53” 20.6 0.81”
HTN-SJ40 Nozzle 13.5mm x 25.4mm, SOJ 40 13.5 0.53” 25.4 1.00”
HTN-TS24 Nozzle 17.0mm x 7.1mm, TSOP 20-24 PIN 17.0 0.67” 7.1 0.28”
HTN-TS32 Nozzle 21.0mm x 9.1mm, TSOP 28-32 PIN 21.0 0.83” 9.1 0.36”
HTN-TS40 Nozzle 21.0mm x 10.8, TSOP 40 PIN 21.0 0.83” 10.8 0.43”
HTN-TS48 Nozzle 21.0mm x 13.3mm, TSOP 48 PIN 21.0 0.83” 13.3 0.52”
HTN-TS24B Nozzle 10.2mm x 18.4mm, TSOP 20-24 PIN 10.2 0.40” 18.4 0.72”
HTN-TS44 Nozzle 12.7mm x 19.8mm, TSOP 24-28/40-44 PIN 12.7 0.50” 19.8 0.78”

Nozzles - BGA A B
Part Number Description MM IN. MM IN.
HTN-B1010 Nozzle 10.0mm x 10.0mm 10.0 0.39” 10.0 0.39”
HTN-B1313 Nozzle 13.0mm x 13.0mm 13.0 0.51” 13.0 0.51”
HTN-B1616 Nozzle 16.0mm x 16.0mm 16.0 0.63” 16.0 0.63”
HTN-B1919 Nozzle 19.0mm x 19.0mm 19.0 0.75” 19.0 0.75”
HTN-B2828 Nozzle 28.0mm x 28.0mm 28.0 1.10” 28.0 1.10”
HTN-B3030 Nozzle 30.0mm x 30.0mm 30.0 1.18” 30.0 1.18”
HTN-B3232 Nozzle 32.0mm x 32.0mm 32.0 1.26” 32.0 1.26”
HTN-B3636 Nozzle 36.0mm x 36.0mm 36.0 1.42” 36.0 1.42”
HTN-B3939 Nozzle 39.0mm x 39.0mm 39.0 1.54” 39.0 1.54”
HTN-B4141 Nozzle 41.0mm x 41.0mm 41.0 1.61” 41.0 1.61”
HTN-B4343 Nozzle 43.0mm x 43.0mm 43.0 1.69” 43.0 1.69”
HTN-B4545 Nozzle 45.0mm x 45.0mm 45.0 1.77” 45.0 1.77”
