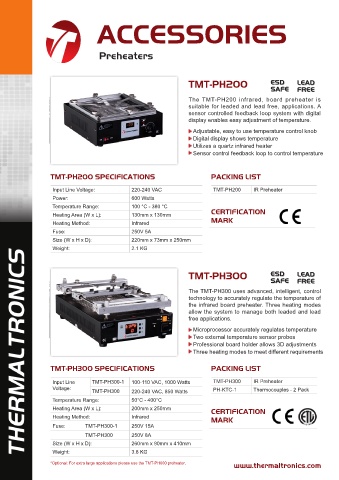

Page 16 - Thermaltronics

ACCESSORIES

Preheaters

TMT-PH200 ESD LEAD
ESD
LEAD
SAFE
FREE
SAFE
FREE
The TMT-PH200 infrared, board preheater is
suitable for leaded and lead free, applications. A
sensor controlled feedback loop system with digital
display enables easy adjustment of temperature.
Adjustable, easy to use temperature control knob
Digital display shows temperature
Utilizes a quartz infrared heater
Sensor control feedback loop to control temperature

TMT-PH200 SPECIFICATIONS PACKING LIST

Input Line Voltage: 220-240 VAC TMT-PH200 IR Preheater
Power: 600 Watts
Temperature Range: 100 °C - 380 °C
Heating Area (W x L): 130mm x 130mm CERTIFICATION
Heating Method: Infrared MARK
Fuse: 250V 5A
Size (W x H x D): 220mm x 73mm x 250mm
Weight: 2.1 KG

TMT-PH300 ESD LEAD
ESD
LEAD
SAFE
FREE
SAFE
FREE
The TMT-PH300 uses advanced, intelligent, control
technology to accurately regulate the temperature of
the infrared board preheater. Three heating modes
allow the system to manage both leaded and lead
free applications.
Microprocessor accurately regulates temperature
Two external temperature sensor probes
Professional board holder allows 3D adjustments
Three heating modes to meet different requirements

TMT-PH300 SPECIFICATIONS PACKING LIST

Input Line TMT-PH300-1 100-110 VAC, 1000 Watts TMT-PH300 IR Preheater
Voltage: PH-KTC-1 Thermocouples - 2 Pack
TMT-PH300 220-240 VAC, 850 Watts
Temperature Range: 50°C - 400°C
Heating Area (W x L): 200mm x 250mm CERTIFICATION
Heating Method: Infrared MARK
Fuse: TMT-PH300-1 250V 15A
TMT-PH300 250V 8A
Size (W x H x D): 260mm x 90mm x 410mm
Weight: 3.8 KG

*Optional: For extra large applications please use the TMT-PH600 preheater.
