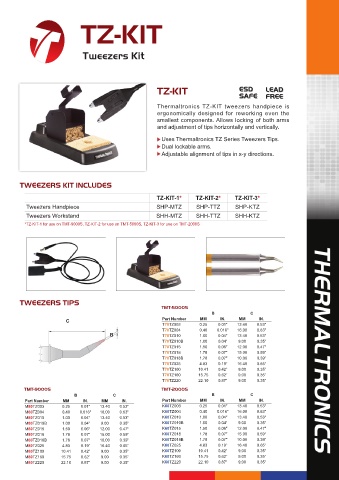

TZ-KIT

Tweezers Kit

TZ-KIT ESD LEAD
ESD
LEAD
SAFE
SAFE
FREE
FREE
Thermaltronics TZ-KIT tweezers handpiece is
ergonomically designed for reworking even the
smallest components. Allows locking of both arms
and adjustment of tips horizontally and vertically.
Uses Thermaltronics TZ Series Tweezers Tips.
Dual lockable arms.
Adjustable alignment of tips in x-y directions.

TWEEZERS KIT INCLUDES
TZ-KIT-1* TZ-KIT-2* TZ-KIT-3*
Tweezers Handpiece SHP-MTZ SHP-TTZ SHP-KTZ
Tweezers Workstand SHH-MTZ SHH-TTZ SHH-KTZ
*TZ-KIT-1 for use on TMT-9000S, TZ-KIT-2 for use on TMT-5000S, TZ-KIT-3 for use on TMT-2000S

TWEEZERS TIPS
TMT-5000S
B C
C Part Number MM IN. MM IN.
T70TZ003 0.25 0.01" 13.40 0.53"
T70TZ004 0.40 0.016" 16.00 0.63"
B T70TZ010 1.00 0.04" 13.40 0.53"
T70TZ010B 1.00 0.04” 9.00 0.35”
T70TZ015 1.50 0.06" 12.00 0.47"
T70TZ018 1.78 0.07" 15.00 0.59”
T70TZ018B 1.78 0.07" 10.00 0.39”
T70TZ025 4.83 0.19” 16.40 0.65”
T70TZ100 10.41 0.42” 9.00 0.35”
T70TZ160 15.75 0.62” 9.00 0.35”
T70TZ220 22.10 0.87” 9.00 0.35”
TMT-9000S TMT-2000S
B C B C
Part Number MM IN. MM IN. Part Number MM IN. MM IN.
M80TZ003 0.25 0.01" 13.40 0.53" K60TZ003 0.25 0.01" 13.40 0.53"
M80TZ004 0.40 0.016" 16.00 0.63" K60TZ004 0.40 0.016" 16.00 0.63"
M80TZ010 1.00 0.04" 13.40 0.53" K60TZ010 1.00 0.04" 13.40 0.53"
M80TZ010B 1.00 0.04” 9.00 0.35” K60TZ010B 1.00 0.04” 9.00 0.35”
M80TZ015 1.50 0.06" 12.00 0.47" K60TZ015 1.50 0.06" 12.00 0.47"
M80TZ018 1.78 0.07" 15.00 0.59” K60TZ018 1.78 0.07" 15.00 0.59”
M80TZ018B 1.78 0.07" 10.00 0.39” K60TZ018B 1.78 0.07" 10.00 0.39”
M80TZ025 4.83 0.19” 16.40 0.65” K60TZ025 4.83 0.19” 16.40 0.65”
M80TZ100 10.41 0.42” 9.00 0.35” K60TZ100 10.41 0.42” 9.00 0.35”
M80TZ160 15.75 0.62” 9.00 0.35” K60TZ160 15.75 0.62” 9.00 0.35”
M80TZ220 22.10 0.87” 9.00 0.35” K60TZ220 22.10 0.87” 9.00 0.35”
