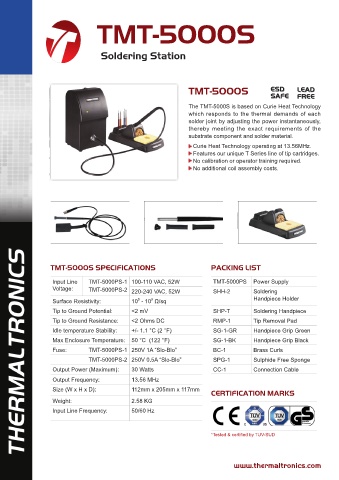

Page 6 - Thermaltronics

TMT-5000S

Soldering Station

TMT-5000S ESD LEAD
ESD
LEAD
SAFE
SAFE
FREE
FREE
The TMT-5000S is based on Curie Heat Technology
which responds to the thermal demands of each
solder joint by adjusting the power instantaneously,
thereby meeting the exact requirements of the
substrate component and solder material.
Curie Heat Technology operating at 13.56MHz.
Features our unique T Series line of tip cartridges.
No calibration or operator training required.
No additional coil assembly costs.

TMT-5000S SPECIFICATIONS PACKING LIST

Input Line TMT-5000PS-1 100-110 VAC, 52W TMT-5000PS Power Supply
Voltage: TMT-5000PS-2 220-240 VAC, 52W SHH-2 Soldering

5
9
Surface Resistivity: 10 - 10 Ω/sq Handpiece Holder
Tip to Ground Potential: <2 mV SHP-T Soldering Handpiece
Tip to Ground Resistance: <2 Ohms DC RMP-1 Tip Removal Pad
Idle temperature Stability: +/- 1.1 °C (2 °F) SG-1-GR Handpiece Grip Green
Max Enclosure Temperature: 50 °C (122 °F) SG-1-BK Handpiece Grip Black
Fuse: TMT-5000PS-1 250V 1A “Slo-Blo” BC-1 Brass Curls
TMT-5000PS-2 250V 0.5A “Slo-Blo” SPG-1 Sulphide Free Sponge
Output Power (Maximum): 30 Watts CC-1 Connection Cable
Output Frequency: 13.56 MHz
Size (W x H x D): 112mm x 205mm x 117mm
CERTIFICATION MARKS
Weight: 2.58 KG
Input Line Frequency: 50/60 Hz

*Tested & certified by TUV-SUD

www.thermaltronics.com
