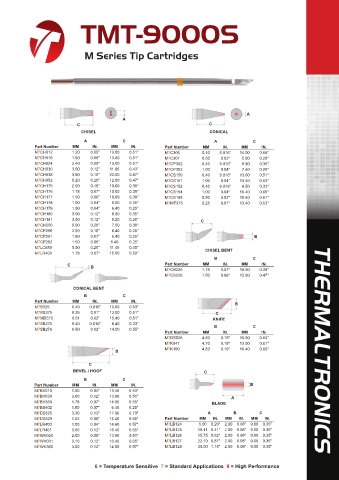

TMT-9000S

M Series Tip Cartridges

A
A
C C
CHISEL CONICAL
A C A C
Part Number MM IN. MM IN. Part Number MM IN. MM IN.
M7CH012 1.20 0.05" 13.00 0.51" M7C300 0.40 0.016" 14.00 0.55"
M7CH016 1.60 0.06" 13.00 0.51" M7C301 0.50 0.02" 5.00 0.20"
M7CH024 2.40 0.09" 13.00 0.51" M7CP302 0.40 0.016" 8.90 0.35"
M7CH030 3.00 0.12" 11.00 0.43" M7CP303 1.00 0.04" 7.40 0.29"
M7CH038 3.80 0.15" 22.00 0.87" M7CS150 0.40 0.016" 13.00 0.51"
M7CH052 5.20 0.20" 12.00 0.47" M7CS151 1.00 0.04" 13.40 0.53"
M7CH175 2.50 0.10" 10.00 0.39" M7CS152 0.40 0.016" 8.50 0.33"
M7CH176 1.78 0.07" 10.00 0.39" M7CS154 1.00 0.04" 16.40 0.65"
M7CH177 1.50 0.06" 10.00 0.39" M7CS155 0.50 0.02" 15.40 0.61"
M7CH178 1.00 0.04" 9.00 0.35" M7MF375 0.25 0.01" 13.40 0.53"
M7CH179 1.00 0.04" 6.40 0.25"
M7CH180 3.00 0.12" 8.90 0.35"
M7CH181 3.00 0.12" 5.20 0.20" C
M7CH250 5.00 0.20" 7.50 0.30"
M7CP200 2.50 0.10" 6.40 0.25"
M7CP201 1.80 0.07" 6.40 0.25" B
M7CP202 1.50 0.06” 6.40 0.25”
M7LC650 5.00 0.20" 11.40 0.45" CHISEL BENT
M7LR403 1.78 0.07" 15.00 0.59"
B C
C B Part Number MM IN. MM IN.
M7CB225 1.78 0.07" 10.00 0.39"
M7CB226 1.50 0.06" 12.00 0.47"

CONICAL BENT
B C
Part Number MM IN. MM IN. B
M7B325 0.40 0.016" 16.00 0.63"
M7BS375 0.25 0.01" 13.00 0.51" C
M7MD575 0.51 0.02" 15.40 0.61" KNIFE
M7SB275 0.40 0.016" 8.40 0.33" B C
M7SB276 0.50 0.02" 14.00 0.55"
Part Number MM IN. MM IN.
M7DS526 4.83 0.19" 16.00 0.63"
M7K047 4.70 0.19" 13.00 0.51"
M7K100 4.83 0.19" 16.40 0.65"
B
C
BEVEL / HOOF C
B C
Part Number MM IN. MM IN. B
M7BV010 1.00 0.04" 13.40 0.53"
M7BV030 3.00 0.12" 13.00 0.51" A
M7BV350 1.78 0.07" 14.00 0.55" BLADE
M7BS602 1.80 0.07" 6.40 0.25"
M7DS525 3.30 0.13" 17.90 0.70" A B C
M7DS529 1.52 0.06" 16.40 0.65" Part Number MM IN. MM IN. MM IN.
M7LR400 1.00 0.04" 14.60 0.57" M7LB124 5.00 0.20" 2.00 0.08" 9.00 0.35"
M7LR401 3.05 0.12" 16.40 0.65" M7LB125 10.41 0.41" 2.00 0.08" 9.00 0.35"
M7WV020 2.00 0.08” 13.00 0.51” M7LB126 15.75 0.62" 2.00 0.08" 9.00 0.35"
M7WV031 3.10 0.12” 16.40 0.65” M7LB127 22.10 0.87" 2.00 0.08" 9.00 0.35"
M7WV300 3.00 0.12" 14.50 0.57" M7LB128 30.00 1.18" 2.00 0.08" 9.00 0.35"

6 = Temperature Sensitive 7 = Standard Applications 8 = High Performance
