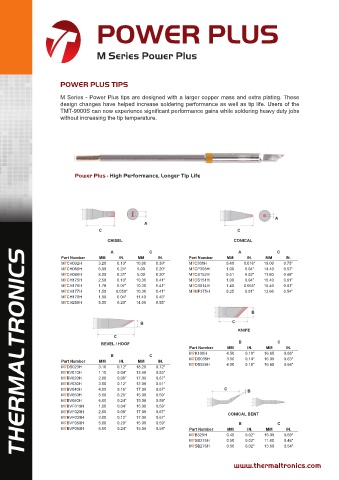

POWER PLUS

M Series Power Plus

POWER PLUS TIPS
M Series - Power Plus tips are designed with a larger copper mass and extra plating. These
design changes have helped increase soldering performance as well as tip life. Users of the
TMT-9000S can now experience significant performance gains while soldering heavy duty jobs
without increasing the tip temperature.

Power Plus - High Performance, Longer Tip Life

A
A
C C
CHISEL CONICAL

A C A C
Part Number MM IN. MM IN. Part Number MM IN. MM IN.
M7CH032H 3.20 0.13" 10.00 0.39" M7C300H 0.40 0.016" 19.00 0.75"
M7CH060H 6.00 0.24" 5.00 0.20" M7CP303H 1.00 0.04" 14.40 0.57"
M7CH080H 8.00 0.31" 5.00 0.20" M7CS152H 0.51 0.02" 11.80 0.46"
M7CH175H 2.50 0.10" 10.30 0.41" M7CS151H 1.00 0.04" 15.40 0.61"
M7CH176H 1.78 0.07" 10.30 0.41" M7CS014H 1.40 0.055" 15.40 0.61"
M7CH177H 1.50 0.059" 10.30 0.41" M7MF375H 0.25 0.01" 13.60 0.54"
M7CH178H 1.00 0.04" 11.40 0.45"
M7CH250H 5.00 0.20” 14.00 0.55”
B
B C
KNIFE
C
BEVEL / HOOF B C
Part Number MM IN. MM IN.
M7K100H 4.50 0.18" 16.65 0.66"
B C
Part Number MM IN. MM IN. M7DS035H 3.50 0.14" 16.00 0.63"
M7DS526H
4.50
16.65
0.66"
0.18"
M7DS023H 3.10 0.12" 18.20 0.72"
M7BV010H 1.10 0.04” 13.40 0.53”
M7BV020H 2.00 0.08” 17.00 0.67”
M7BV030H 3.00 0.12” 13.00 0.51”
M7BV040H 4.00 0.16” 17.00 0.67” C B
M7BV050H 5.00 0.20” 15.00 0.59”
M7BV060H 6.00 0.24” 15.00 0.59”
M7BVF010H 1.00 0.04” 15.00 0.59”
M7BVF020H 2.00 0.08” 17.00 0.67” CONICAL BENT
M7BVF030H 3.00 0.12” 17.00 0.67”
M7BVF050H 5.00 0.20” 15.00 0.59” B C
M7BVF060H 6.00 0.24” 15.00 0.59” Part Number MM IN. MM IN.
M7B325H 0.40 0.02" 15.00 0.59"
M7SB275H 0.50 0.02" 11.80 0.46"
M7SB276H 0.50 0.02" 13.60 0.54"
