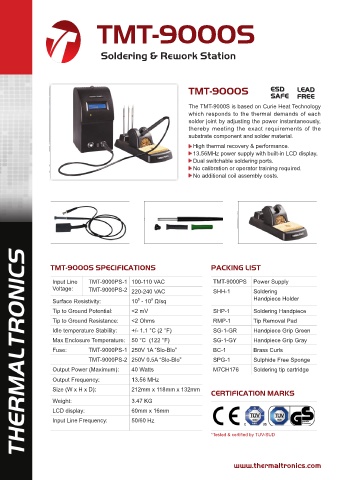

TMT-9000S

Soldering & Rework Station

TMT-9000S ESD LEAD
ESD
LEAD
SAFE
FREE
SAFE
FREE
The TMT-9000S is based on Curie Heat Technology
which responds to the thermal demands of each
solder joint by adjusting the power instantaneously,
thereby meeting the exact requirements of the
substrate component and solder material.
High thermal recovery & performance.
13.56MHz power supply with built-in LCD display.
Dual switchable soldering ports.
No calibration or operator training required.
No additional coil assembly costs.

TMT-9000S SPECIFICATIONS PACKING LIST

Input Line TMT-9000PS-1 100-110 VAC TMT-9000PS Power Supply
Voltage: TMT-9000PS-2 220-240 VAC SHH-1 Soldering

5
9
Surface Resistivity: 10 - 10 Ω/sq Handpiece Holder
Tip to Ground Potential: <2 mV SHP-1 Soldering Handpiece
Tip to Ground Resistance: <2 Ohms RMP-1 Tip Removal Pad
Idle temperature Stability: +/- 1.1 °C (2 °F) SG-1-GR Handpiece Grip Green
Max Enclosure Temperature: 50 °C (122 °F) SG-1-GY Handpiece Grip Gray
Fuse: TMT-9000PS-1 250V 1A “Slo-Blo” BC-1 Brass Curls
TMT-9000PS-2 250V 0.5A “Slo-Blo” SPG-1 Sulphide Free Sponge
Output Power (Maximum): 40 Watts M7CH176 Soldering tip cartridge
Output Frequency: 13.56 MHz
Size (W x H x D): 212mm x 118mm x 132mm
CERTIFICATION MARKS
Weight: 3.47 KG
LCD display: 60mm x 16mm
Input Line Frequency: 50/60 Hz

*Tested & certified by TUV-SUD
