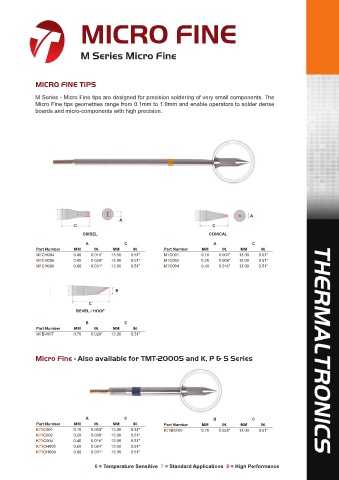

POWER PLUS MICRO FINE

M Series Micro Fine

MICRO FINE TIPS
M Series - Micro Fine tips are designed for precision soldering of very small components. The
Micro Fine tips geometries range from 0.1mm to 1.0mm and enable operators to solder dense
boards and micro-components with high precision.

A
A
C C
CHISEL CONICAL
A C A C
Part Number MM IN. MM IN. Part Number MM IN. MM IN.
M7CH004 0.40 0.016” 13.00 0.51" M7C001 0.10 0.004" 13.00 0.51"
M7CH006 0.60 0.024" 13.00 0.51" M7C002 0.20 0.008" 13.00 0.51"
M7CH008 0.80 0.031" 13.00 0.51" M7C004 0.40 0.016" 13.00 0.51"

B

C
BEVEL / HOOF
B C
Part Number MM IN. MM IN.
M7BV007 0.70 0.028" 13.00 0.51"

Micro Fine - Also available for TMT-2000S and K, P & S Series

A C B C
Part Number MM IN. MM IN. Part Number MM IN. MM IN.
K75C001 0.10 0.004" 13.00 0.51" K75BV007 0.70 0.028" 13.00 0.51"
K75C002 0.20 0.008" 13.00 0.51"
K75C004 0.40 0.016" 13.00 0.51"
K75CH006 0.60 0.024” 13.00 0.51"
K75CH008 0.80 0.031" 13.00 0.51"

6 = Temperature Sensitive 7 = Standard Applications 8 = High Performance
