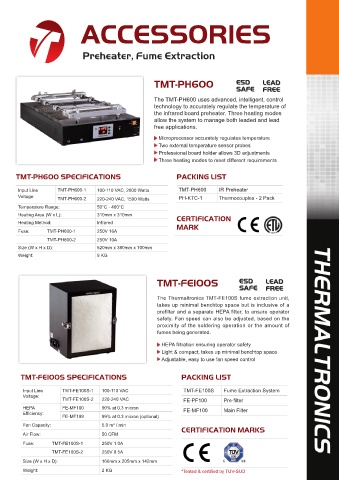

Page 17 - Thermaltronics

ACCESSORIES

Preheater, Fume Extraction

TMT-PH600 ESD LEAD
ESD
LEAD
SAFE
FREE
SAFE
FREE
The TMT-PH600 uses advanced, intelligent, control
technology to accurately regulate the temperature of
the infrared board preheater. Three heating modes
allow the system to manage both leaded and lead
free applications.
Microprocessor accurately regulates temperature
Two external temperature sensor probes
Professional board holder allows 3D adjustments
Three heating modes to meet different requirements

TMT-PH600 SPECIFICATIONS PACKING LIST

Input Line TMT-PH600-1 100-110 VAC, 2000 Watts TMT-PH600 IR Preheater
Voltage: TMT-PH600-2 220-240 VAC, 1500 Watts PH-KTC-1 Thermocouples - 2 Pack

Temperature Range: 50°C - 400°C
Heating Area (W x L): 310mm x 310mm CERTIFICATION
Heating Method: Infrared MARK
Fuse: TMT-PH600-1 250V 16A
TMT-PH600-2 250V 10A
Size (W x H x D): 520mm x 380mm x 100mm
Weight: 9 KG

TMT-FE100S ESD LEAD
ESD
LEAD
SAFE
SAFE FREE
FREE
The Thermaltronics TMT-FE100S fume extraction unit,
takes up minimal benchtop space but is inclusive of a
prefilter and a separate HEPA filter, to ensure operator
safety. Fan speed can also be adjusted, based on the
proximity of the soldering operation or the amount of
fumes being generated.

HEPA filtration ensuring operator safety
Light & compact, takes up minimal benchtop space
Adjustable, easy to use fan speed control

TMT-FE100S SPECIFICATIONS PACKING LIST

Input Line TMT-FE100S-1 100-110 VAC TMT-FE100S Fume Extraction System
Voltage:
TMT-FE100S-2 220-240 VAC FE-PF100 Pre-filter
HEPA FE-MF100 90% at 0.3 micron FE-MF100 Main Filter
Efficiency:
FE-MF199 99% at 0.3 micron (optional)
Fan Capacity: 5.0 m³ / min
CERTIFICATION MARKS
Air Flow: 50 CFM
Fuse: TMT-FE100S-1 250V 1.0A
TMT-FE100S-2 250V 0.5A
Size (W x H x D): 166mm x 205mm x 142mm
Weight: 2 KG *Tested & certified by TUV-SUD
