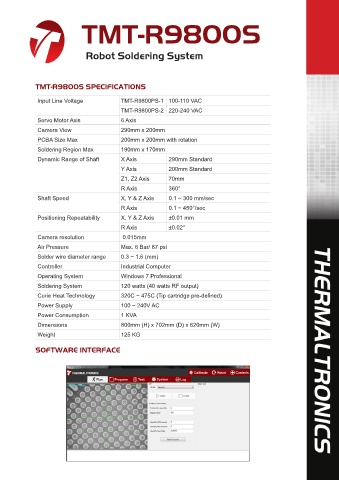

TMT-R9800S





                               Robot Soldering System





             TMT-R9800S SPECIFICATIONS

              Input Line Voltage            TMT-R9800PS-1 100-110 VAC
                                            TMT-R9800PS-2 220-240 VAC

              Servo Motor Axis              6 Axis
              Camera View                   290mm x 200mm
              PCBA Size Max                 200mm x 200mm with rotation
              Soldering Region Max          190mm x 170mm
              Dynamic Range of Shaft        X Axis          290mm Standard
                                            Y Axis          200mm Standard
                                            Z1, Z2 Axis     70mm
                                            R Axis          360°

              Shaft Speed                   X, Y & Z Axis   0.1 ~ 300 mm/sec
                                            R Axis          0.1 ~ 450°/sec
              Positioning Repeatability     X, Y & Z Axis   ±0.01 mm
                                            R Axis          ±0.02°
              Camera resolution              0.015mm
              Air Pressure                  Max. 6 Bar/ 87 psi
              Solder wire diameter range    0.3 ~ 1.6 (mm)

              Controller                    Industrial Computer
              Operating System              Windows 7 Professional
              Soldering System              120 watts (40 watts RF output)
              Curie Heat Technology         320C ~ 475C (Tip cartridge pre-defined)
              Power Supply                  100 ~ 240V AC
              Power Consumption             1 KVA
              Dimensions                    800mm (H) x 702mm (D) x 620mm (W)
              Weight                        125 KG


             SOFTWARE INTERFACE
