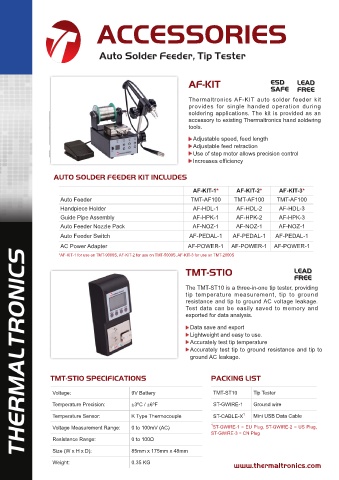

Page 18 - Thermaltronics

ACCESSORIES

Auto Solder Feeder, Tip Tester

AF-KIT ESD LEAD
ESD
LEAD
SAFE
SAFE
FREE
FREE
Thermaltronics AF-KIT auto solder feeder kit
provides for single handed operation during
soldering applications. The kit is provided as an
accessory to existing Thermaltronics hand soldering
tools.
Adjustable speed, feed length
Adjustable feed retraction
Use of step motor allows precision control
Increases efficiency

AUTO SOLDER FEEDER KIT INCLUDES

AF-KIT-1* AF-KIT-2* AF-KIT-3*
Auto Feeder TMT-AF100 TMT-AF100 TMT-AF100
Handpiece Holder AF-HDL-1 AF-HDL-2 AF-HDL-3
Guide Pipe Assembly AF-HPK-1 AF-HPK-2 AF-HPK-3
Auto Feeder Nozzle Pack AF-NOZ-1 AF-NOZ-1 AF-NOZ-1
Auto Feeder Switch AF-PEDAL-1 AF-PEDAL-1 AF-PEDAL-1
AC Power Adapter AF-POWER-1 AF-POWER-1 AF-POWER-1
*AF-KIT-1 for use on TMT-9000S, AF-KIT-2 for use on TMT-5000S, AF-KIT-3 for use on TMT-2000S

TMT-ST10 LEAD
LEAD
FREE
FREE
The TMT-ST10 is a three-in-one tip tester, providing
tip temperature measurement, tip to ground
resistance and tip to ground AC voltage leakage.
Test data can be easily saved to memory and
exported for data analysis.

Data save and export
Lightweight and easy to use.
Accurately test tip temperature
Accurately test tip to ground resistance and tip to
ground AC leakage.

TMT-ST10 SPECIFICATIONS PACKING LIST

Voltage: 9V Battery TMT-ST10 Tip Tester

Temperature Precision: ±3ºC / ±6ºF ST-GWIRE-1 Ground wire
Temperature Sensor: K Type Thermocouple ST-CABLE-X 1 Mini USB Data Cable

Voltage Measurement Range: 0 to 100mV (AC) 1 ST-GWIRE-1 = EU Plug, ST-GWIRE-2 = US Plug,
ST-GWIRE-3 = CN Plug
Resistance Range: 0 to 100Ω
Size (W x H x D): 85mm x 175mm x 48mm

Weight: 0.35 KG
www.thermaltronics.com
