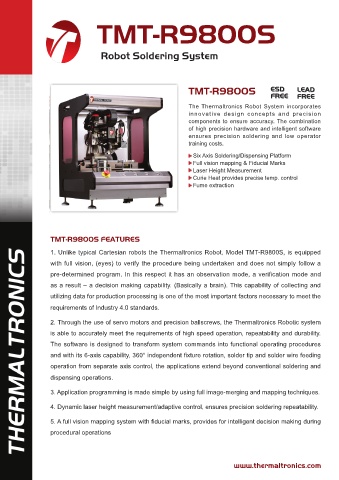

TMT-R9800S





                                    Robot Soldering System





                                                                   TMT-R9800S                   ESD      LEAD
                                                                                                ESD
                                                                                                         LEAD
                                                                                                FREE
                                                                                                FREE
                                                                                                         FREE
                                                                                                         FREE
                                                                   The Thermaltronics Robot System incorporates
                                                                   innovative design concepts and precision
                                                                   components to ensure accuracy. The combination
                                                                   of high precision hardware and intelligent software
                                                                   ensures precision soldering and low operator
                                                                   training costs.
                                                                     Six Axis Soldering/Dispensing Platform
                                                                     Full vision mapping & Fiducial Marks
                                                                     Laser Height Measurement
                                                                     Curie Heat provides precise temp. control
                                                                     Fume extraction









                   TMT-R9800S FEATURES

                   1. Unlike typical Cartesian robots the Thermaltronics Robot, Model TMT-R9800S, is equipped

                   with full vision, (eyes) to verify the procedure being undertaken and does not simply follow a
                   pre-determined program. In this respect it has an observation mode, a verification mode and

                   as a result – a decision making capability. (Basically a brain). This capability of collecting and
                   utilizing data for production processing is one of the most important factors necessary to meet the
                   requirements of Industry 4.0 standards.


                   2. Through the use of servo motors and precision ballscrews, the Thermaltronics Robotic system
                   is able to accurately meet the requirements of high speed operation, repeatability and durability.
                   The software is designed to transform system commands into functional operating procedures

                   and with its 6-axis capability, 360° independent fixture rotation, solder tip and solder wire feeding
                   operation from separate axis control, the applications extend beyond conventional soldering and

                   dispensing operations.

                   3. Application programming is made simple by using full image-merging and mapping techniques.

                   4. Dynamic laser height measurement/adaptive control, ensures precision soldering repeatability.


                   5. A full vision mapping system with fiducial marks, provides for intelligent decision making during
                   procedural operations
