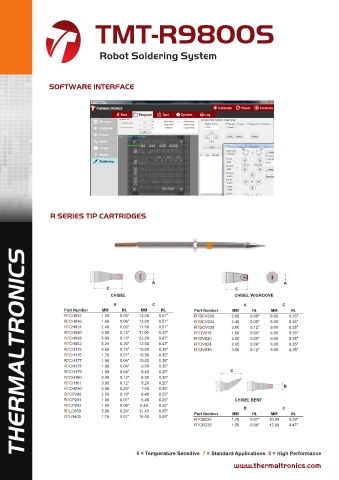

P. 22
TMT-R9800S
Robot Soldering System
SOFTWARE INTERFACE
R SERIES TIP CARTRIDGES
A A
C C
CHISEL CHISEL W/GROOVE
A C A C
Part Number MM IN. MM IN. Part Number MM IN. MM IN.
R7CH012 1.20 0.05" 13.00 0.51" R7BCV020 2.00 0.08" 9.00 0.35"
R7CH016 1.60 0.06" 13.00 0.51" R7BCV024 2.40 0.09" 9.00 0.35"
R7CH024 2.40 0.09" 13.00 0.51" R7BCV030 3.00 0.12" 9.00 0.35"
R7CH030 3.00 0.12" 11.00 0.43" R7DV016 1.60 0.06" 9.00 0.35"
R7CH038 3.80 0.15" 22.00 0.87" R7DV020 2.00 0.08" 9.00 0.35"
R7CH052 5.20 0.20" 12.00 0.47" R7DV024 2.40 0.09" 9.00 0.35"
R7CH175 2.50 0.10" 10.00 0.39" R7DV030 3.00 0.12" 9.00 0.35"
R7CH176 1.78 0.07" 10.00 0.39"
R7CH177 1.50 0.06" 10.00 0.39"
R7CH178 1.00 0.04" 9.00 0.35"
R7CH179 1.00 0.04" 6.40 0.25" C
R7CH180 3.00 0.12" 8.90 0.35"
R7CH181 3.00 0.12" 5.20 0.20" B
R7CH250 5.00 0.20" 7.50 0.30"
R7CP200 2.50 0.10" 6.40 0.25"
R7CP201 1.80 0.07" 6.40 0.25" CHISEL BENT
R7CP202 1.50 0.06” 6.40 0.25” B C
R7LC650 5.00 0.20" 11.40 0.45" Part Number MM IN. MM IN.
R7LR403 1.78 0.07" 15.00 0.59"
R7CB225 1.78 0.07" 10.00 0.39"
R7CB226 1.50 0.06" 12.00 0.47"
6 = Temperature Sensitive 7 = Standard Applications 8 = High Performance
www.thermaltronics.com
