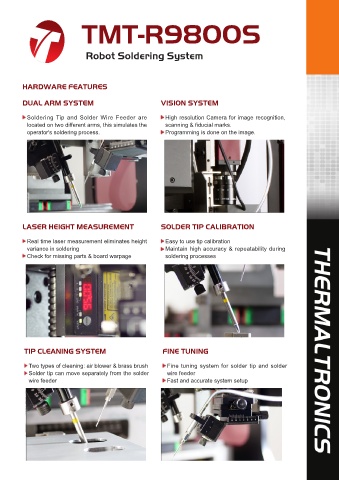

TMT-R9800S





                               Robot Soldering System





         HARDWARE FEATURES


         DUAL ARM SYSTEM                                  VISION SYSTEM

           Soldering Tip and Solder Wire Feeder are        High resolution Camera for image recognition,
           located on two different arms, this simulates the   scanning & fiducial marks.
           operator's soldering process.                   Programming is done on the image.



















         LASER HEIGHT MEASUREMENT                         SOLDER TIP CALIBRATION

           Real time laser measurement eliminates height   Easy to use tip calibration
           variance in soldering                           Maintain high accuracy & repeatability during
           Check for missing parts & board warpage         soldering processes



















          TIP CLEANING SYSTEM                             FINE TUNING

           Two types of cleaning: air blower & brass brush  Fine tuning system for solder tip and solder
           Solder tip can move separately from the solder   wire feeder
           wire feeder                                      Fast and accurate system setup
