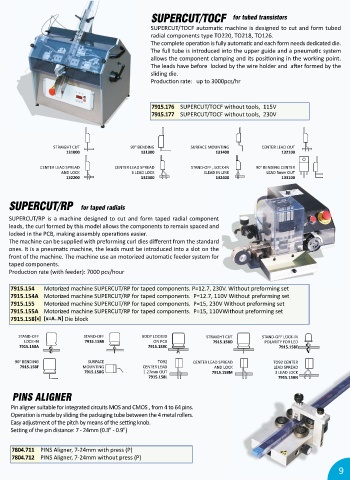

Page 9 - ITECO Catalogue 2024

SUPERCUT/TOCF for tubed transistors

SUPERCUT/TOCF automa c machine is designed to cut and form tubed
radial components type TO220, TO218, TO126.
The complete opera on is fully automa c and each form needs dedicated die.

The full tube is introduced into the upper guide and a pneuma c system
allows the component clamping and its posi oning in the working point.

The leads have before locked by the wire holder and a er formed by the
sliding die.

Produc on rate: up to 3000pcs/hr
7915.176 SUPERCUT/TOCF without tools, 115V
7915.177 SUPERCUT/TOCF without tools, 230V

STRAIGHT CUT 90° BENDING SURFACE MOUNTING CENTER LEAD OUT
131000 131300 131400 132100

CENTER LEAD SPREAD CENTER LEAD SPREAD STAND-OFF , LOCK-IN 90° BENDING CENTER
AND LOCK 3 LEAD LOCK 3LEAD IN LINE LEAD 5mm OUT
132200 132300 132400 133100

SUPERCUT/RP for taped radials

SUPERCUT/RP is a machine designed to cut and form taped radial component
leads, the curl formed by this model allows the components to remain spaced and
locked in the PCB, making assembly opera ons easier.

The machine can be supplied with preforming curl dies different from the standard

ones. It is a pneuma c machine, the leads must be introduced into a slot on the

front of the machine. The machine use an motorized automa c feeder system for
taped components.

Produc on rate (with feeder): 7000 pcs/hour
7915.154 Motorized machine SUPERCUT/RP for taped components. P=12.7, 230V. Without preforming set
7915.154A Motorized machine SUPERCUT/RP for taped components. P=12.7, 110V Without preforming set
7915.155 Motorized machine SUPERCUT/RP for taped components. P=15, 230V Without preforming set
7915.155A Motorized machine SUPERCUT/RP for taped components. P=15, 110VWithout preforming set
7915.158[x] [x=A..N] Die block

STAND-OFF STAND-OFF BODY LOCKED STRAIGHT CUT STAND-OFF LOCK-IN
LOCK-IN 7915.158B ON PCB 7915.158D POLARITY FOR LED
7915.158A 7915.158C 7915.158E

90° BENDING SURFACE TO92 CENTER LEAD SPREAD TO92 CENTER
7915.158F MOUNTING CENTER LEAD AND LOCK LEAD SPREAD
7915.158G 1.27mm OUT 7915.158M 3 LEAD LOCK
7915.158L 7915.158N

PINS ALIGNER

Pin aligner suitable for integrated circuits MOS and CMOS , from 4 to 64 pins.
Opera on is made by sliding the packaging tube between the 4 metal rollers.

Easy adjustment of the pitch by means of the se ng knob.

Se ng of the pin distance: 7 - 24mm (0.3" - 0.9")
7804.711 PINS Aligner, 7-24mm with press (P)
7804.712 PINS Aligner, 7-24mm without press (P)
