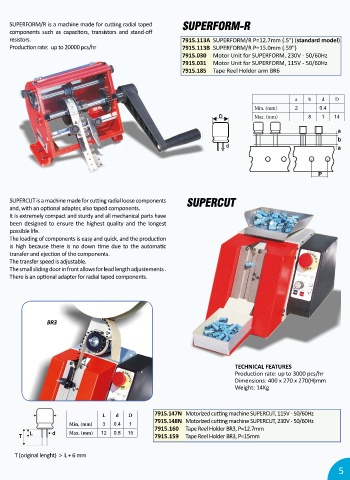

Page 5 - ITECO Catalogue 2024

SUPERFORM/R is a machine made for cu ng radial taped SUPERFORM-R
components such as capacitors, transistors and stand-off
resistors. 7915.113A SUPERFORM/R P=12.7mm (.5") (standard model)

Produc on rate: up to 20000 pcs/hr 7915.113B SUPERFORM/R P=15.0mm (.59")
7915.030 Motor Unit for SUPERFORM, 230V - 50/60Hz
7915.031 Motor Unit for SUPERFORM, 115V - 50/60Hz
7915.185 Tape Reel Holder arm BR6

a b d D
Min. (mm) 2 0.4
Max. (mm) 8 1 1 4

SUPERCUT is a machine made for cu ng radial loose components SUPERCUT

and, with an op onal adapter, also taped components.
It is extremely compact and sturdy and all mechanical parts have
been designed to ensure the highest quality and the longest
possible life.
The loading of components is easy and quick, and the produc on
is high because there is no down me due to the automa c

transfer and ejec on of the components.

The transfer speed is adjustable.
The small sliding door in front allows for lead length adjustements .
There is an op onal adapter for radial taped components.

R
3
BR3
B

TECHNICAL FEATURES

Produc on rate: up to 3000 pcs/hr
Dimensions: 400 x 270 x 270(H)mm
Weight: 14Kg

7915.147N Motorized cu ng machine SUPERCUT, 115V - 50/60Hz

L d D
7915.148N Motorized cu ng machine SUPERCUT, 230V - 50/60Hz

Min. (mm) 3 0.4 1
7915.160 Tape Reel Holder BR3, P=12.7mm
Max. (mm) 12 0.8 15
7915.159 Tape Reel Holder BR3, P=15mm
T (original lenght) > L + 6 mm
