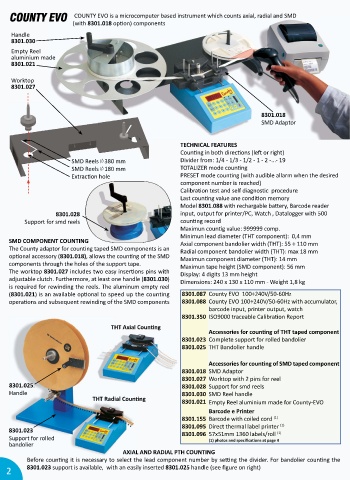

COUNTY EVO COUNTY EVO is a microcomputer based instrument which counts axial, radial and SMD

(with 8301.018 op on) components
Handle
8301.030
Empty Reel
aluminium made
8301.021

Worktop
8301.027

8301.018
SMD Adaptor

TECHNICAL FEATURES

Coun ng in both direc ons (le or right)
SMD Reels ∅380 mm Divider from: 1/4 - 1/3 - 1/2 - 1 - 2 -...- 19
SMD Reels ∅180 mm TOTALIZER mode coun ng

Extrac on hole PRESET mode coun ng (with audible allarm when the desired

component number is reached)

Calibra on test and self diagnos c procedure

Last coun ng value ane condi on memory

Model 8301.088 with rechargable ba ery, Barcode reader
8301.028 input, output for printer/PC, Watch , Datalogger with 500

Support for smd reels coun ng record
Maximun coun g value: 999999 comp.

Minimun lead diameter (THT component): 0,4 mm
SMD COMPONENT COUNTING Axial component bandolier width (THT): 55 ÷ 110 mm
The County adaptor for coun ng taped SMD components is an Radial component bandolier width (THT): max 18 mm

op onal accessory (8301.018), allows the coun ng of the SMD Maximun component diameter (THT): 14 mm

components through the holes of the support tape. Maximun tape height (SMD component): 56 mm
The worktop 8301.027 includes two easy inser ons pins with Display: 4 digits 13 mm height

adjustable clutch. Furthermore, at least one handle (8301.030) Dimensions: 240 x 130 x 110 mm - Weight 1,8 kg
is required for rewinding the reels. The aluminum empty reel
(8301.021) is an available op onal to speed up the counting 8301.087 County EVO 100÷240V/50-60Hz

opera ons and subsequent rewinding of the SMD components 8301.088 County EVO 100÷240V/50-60Hz with accumulator,

barcode input, printer output, watch
8301.350 ISO9000 traceable Calibra on Report
THT Axial Coun ng

Accessories for coun ng of THT taped component
8301.023 Complete support for rolled bandolier
8301.025 THT Bandolier handle
Accessories for coun ng of SMD taped component

8301.018 SMD Adaptor
8301.027 Worktop with 2 pins for reel
8301.025. 8301.028 Support for smd reels
Handle 8301.030 SMD Reel handle
THT Radial Coun ng
8301.021 Empty Reel aluminium made for County-EVO
Barcode e Printer
8301.155 Barcode with coiled cord
(1)
8301.095 Direct thermal label printer (1)
8301.023 8301.096 57x51mm 1360 labels/roll (1)
Support for rolled (1) photos and specifi ca ons at page 4

bandolier
AXIAL AND RADIAL PTH COUNTING

Before coun ng it is necessary to select the lead component number by se ng the divider. For bandolier coun ng the

2 8301.023 support is available, with an easily inserted 8301.025 handle (see figure on right)
