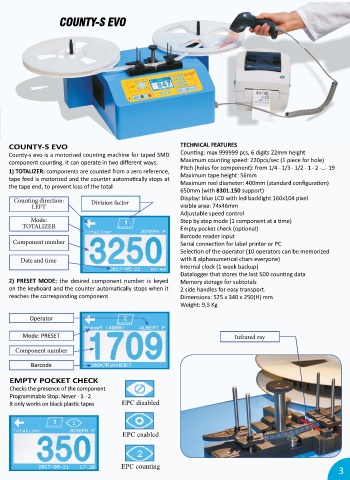

Page 3 - ITECO Catalogue 2024

COUNTY-S EVO

COUNTY-S EVO TECHNICAL FEATURES

County-s evo is a motorized coun ng machine for taped SMD Coun ng: max 999999 pcs, 6 digits 22mm height

component coun ng. It can operate in two different ways: Maximum coun ng speed: 220pcs/sec (1 piece for hole)
Pitch (holes for component): from 1/4 - 1/3 - 1/2 - 1 - 2 -...- 19
1) TOTALIZER: components are counted from a zero reference,

tape feed is motorized and the counter automa cally stops at Maximum tape height: 56mm

the tape end, to prevent loss of the total Maximum reel diameter: 400mm (standard configura on)
650mm (with 8301.150 support)
Display: blue LCD with led backlight 160x104 pixel
Counting direction: Division factor
LEFT visible area: 74x46mm
Adjustable speed control
Mode: Step by step mode (1 component at a me)

TOTALIZER

Empty pocket check (op onal)
Barcode reader input
Component number Serial connec on for label printer or PC

Selec on of the operator (10 operators can be memorized

Date and time with 8 alphanumerical chars everyone)
Internal clock (1 week backup)

Datalogger that stores the last 500 coun ng data
2) PRESET MODE: the desired component number is keyed Memory storage for subtotals
on the keyboard and the counter automa cally stops when it 2 side handles for easy transport.

reaches the corresponding component Dimensions: 525 x 340 x 250(H) mm
Weight: 9,5 Kg
Operator
Mode: PRESET Infrared ray
Component number
Barcode

EMPTY POCKET CHECK
Checks the presence of the component
Programmable Stop: Never - 1 - 2

It only works on black plas c tapes EPC disabled

EPC enabled

EPC counting
