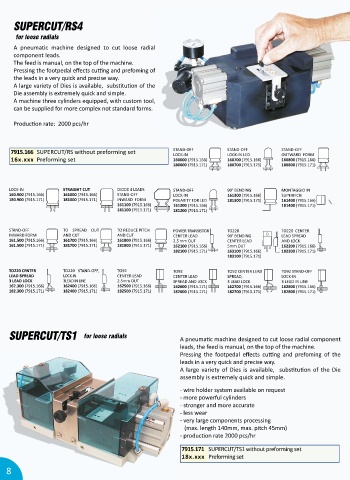

SUPERCUT/RS4

for loose radials

A pneuma c machine designed to cut loose radial
component leads.
The feed is manual, on the top of the machine.

Pressing the footpedal effects cu ng and prefoming of

the leads in a very quick and precise way.
A large variety of Dies is available, subs tu on of the

Die assembly is extremely quick and simple.
A machine three cylinders equipped, with custom tool,
can be supplied for more complex not standard forms.
Produc on rate: 2000 pcs/hr

7915.166 SUPERCUT/RS without preforming set STAND-OFF STAND-OFF STAND-OFF
LOCK-IN LOCK-IN LED OUTWARD FORM
16x.xxx Preforming set 160600 (7915.166) 160700 (7915.166) 160800 (7915.166)
180600 (7915.171) 180700 (7915.171) 180800 (7915.171)

LOCK-IN STRAIGHT CUT DIODE 4 LEADS STAND-OFF 90° BENDING MONTAGGIO IN
160.900 (7915.166) 161000 (7915.166) STAND-OFF LOCK-IN 161300 (7915.166) SUPERFICIE
180.900 (7915.171) 181000 (7915.171) INWARD FORM POLARITY FOR LED 181300 (7915.171) 161400 (7915.166)
161100 (7915.166) 161200 (7915.166) 181400 (7915.171)
181100 (7915.171) 181200 (7915.171)

STAND-OFF TO SPREAD OUT TO REDUCE PITCH POWER TRANSISTOR TO220 TO220 CENTER
INWARD FORM AND CUT AND CUT CENTER LEAD 90° BENDING LEAD SPREAD
161.500 (7915.166) 161700 (7915.166) 161800 (7915.166) 2.5 mm OUT CENTER LEAD AND LOCK
161.500 (7915.171) 181700 (7915.171) 181800 (7915.171) 162100 (7915.166) 5mm OUT 162200 (7915.166)
182100 (7915.171) 163100 (7915.166) 182200 (7915.171)
183100 (7915.171)

TO220 CENTER TO220 STAND-OFF, TO92 TO92 TO92 CENTER LEAD TO92 STAND-OFF
LEAD SPREAD LOCK-IN CENTER LEAD CENTER LEAD SPREAD, LOCK-IN
3 LEAD LOCK 3LEAD IN LINE 2.5mm OUT SPREAD AND LOCK 3 LEAD LOCK 3 LEAD IN LINE
162.300 (7915.166) 162400 (7915.166) 162500 (7915.166) 162600 (7915.171) 162700 (7915.166) 162800 (7915.166)
182.300 (7915.171) 182400 (7915.171) 182500 (7915.171) 182600 (7915.171) 182700 (7915.171) 182800 (7915.171)

SUPERCUT/TS1 for loose radials A pneuma c machine designed to cut loose radial component

leads, the feed is manual, on the top of the machine.

Pressing the footpedal effects cu ng and prefoming of the
leads in a very quick and precise way.
A large variety of Dies is available, subs tu on of the Die

assembly is extremely quick and simple.
- wire holder system available on request
- more powerful cylinders
- stronger and more accurate
- less wear
- very large components processing
(max. length 140mm, max. pitch 45mm)
- produc on rate 2000 pcs/hr

7915.171 SUPERCUT/TS1 without preforming set
18x.xxx Preforming set
