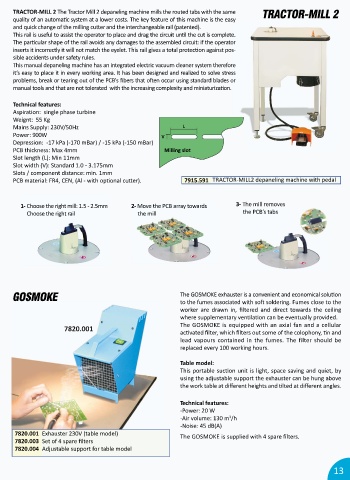

TRACTOR-MILL 2 The Tractor Mill 2 depaneling machine mills the routed tabs with the same TRACTOR-MILL 2
quality of an automa c system at a lower costs. The key feature of this machine is the easy

and quick change of the milling cu er and the interchangeable rail (patented).

This rail is useful to assist the operator to place and drag the circuit un l the cut is complete.
The par cular shape of the rail avoids any damages to the assembled circuit: if the operator

inserts it incorrectly it will not match the eyelet. This rail gives a total protec on against pos-
sible accidents under safety rules.
This manual depaneling machine has an integrated electric vacuum cleaner system therefore
it’s easy to place it in every working area. It has been designed and realized to solve stress

problems, break or tearing out of the PCB's fibers that o en occur using standard blades or

manual tools and that are not tolerated with the increasing complexity and miniaturiza on.

Technical features:

Aspira on: single phase turbine
Weignt: 55 Kg
Mains Supply: 230V/50Hz L
Power: 900W V
Depression: -17 kPa (-170 mBar) / -15 kPa (-150 mBar)
PCB thickness: Max 4mm Milling slot
Slot length (L): Min 11mm
Slot width (V): Standard 1.0 - 3.175mm
Slots / component distance: min. 1mm
PCB material: FR4, CEN, (Al - with op onal cu er). 7915.591 TRACTOR-MILL2 depaneling machine with pedal

1- Choose the right mill: 1.5 - 2.5mm 2- Move the PCB array towards 3- The mill removes
Choose the right rail the mill the PCB’s tabs

GOSMOKE The GOSMOKE exhauster is a convenient and economical solu on

to the fumes associated with so soldering. Fumes close to the

worker are drawn in, filtered and direct towards the ceiling

where supplementary ven la on can be eventually provided.
The GOSMOKE is equipped with an axial fan and a cellular
7820.001
7820
.
00
1

ac vated filter, which filters out some of the colophony, n and
lead vapours contained in the fumes. The filter should be
replaced every 100 working hours.
Table model:
This portable suc on unit is light, space saving and quiet, by

using the adjustable support the exhauster can be hung above

the work table at different heights and lted at different angles.

Technical features:
-Power: 20 W
3
-Air volume: 130 m /h
-Noise: 45 dB(A)
7820.001 Exhauster 230V (table model) The GOSMOKE is supplied with 4 spare fi lters.
7820.003 Set of 4 spare fi lters
7820.004 Adjustable support for table model
