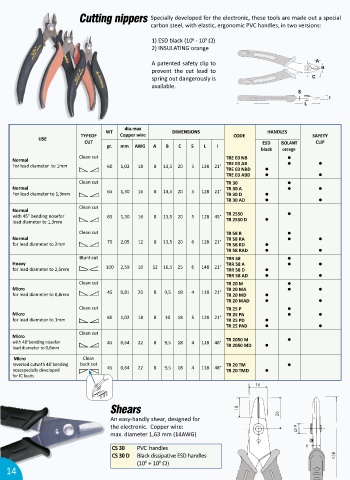

Page 14 - ITECO Catalogue 2024

Cutting nippers Specially developed for the electronic, these tools are made out a special

carbon steel, with elas c, ergonomic PVC handles, in two versions:
9
1) ESD black (10 - 10 )
6
2) INSULATING orange
A patented safety clip to
prevent the cut lead to
spring out dangerously is
available.

dia.max
WT DIMENSIONS HANDLES
TYPEOF Copper wire CODE SAFETY
USE
CUT ESD ISOLANT CLIP
gr. mm AWG A B C S L I
black orange
Clean cut TRE 03 NB 
Normal
For lead diameter to 1mm 60 1,02 18 8 13,5 20 5 138 21° TRE 03 AB  
TRE 03 NBD 
TRE 03 ABD  
Clean cut TR 30 
Normal TR 30 A  
For lead diameter to 1,3mm 65 1,30 16 8 13,5 20 5 128 21° TR 30 D 
TR 30 AD  
Clean cut
Normal
with 45° bending nosefor 65 1,30 16 8 13,5 20 5 128 45° TR 2550 
lead diameter to 1,3mm TR 2550 D 
Clean cut TR 58 R 
Normal TR 58 RA  
for lead diameter to 2mm 75 2,05 12 8 13,5 20 6 128 21° TR 58 RD 
TR 58 RAD  
Blunt cut TRR 58 
Heavy TRR 58 A  
for lead diameter to 2,5mm 100 2,59 10 12 16,5 25 6 148 21° TRR 58 D 
TRR 58 AD  
Clean cut TR 20 M 
Micro TR 20 MA  
for lead diameter to 0,8mm 45 0,81 20 8 9,5 18 4 118 21° TR 20 MD  
TR 20 MAD  
Clean cut TR 25 P 
Micro TR 25 PA  
for lead diameter to 1mm 60 1,02 18 8 10 18 5 128 21° TR 25 PD 
TR 25 PAD  
Clean cut
Micro
with 48°bending nosefor 45 0,64 22 8 9,5 18 4 118 48° TR 2050 M 
lead diameter to 0,6mm TR 2050 MD 

Micro Clean
reversed cutwith 48°bending back cut TR 20 TM 
nosespecially developed 45 0,64 22 8 9,5 18 4 118 48° TR 20 TMD 
for IC leads

Shears
An easy-handly shear, designed for
the electronic. Copper wire:
max. diameter 1,63 mm (14AWG)

CS 30 PVC handles

CS 30 D Black dissipa ve ESD handles
(10 ÷ 10 
9
6
14
