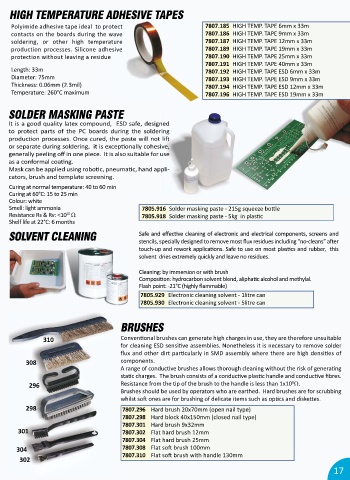

Page 17 - ITECO Catalogue 2024

HIGH TEMPERATURE ADHESIVE TAPES

Polyimide adhesive tape ideal to protect 7807.185 HIGH TEMP. TAPE 6mm x 33m
contacts on the boards during the wave 7807.186 HIGH TEMP. TAPE 9mm x 33m
soldering, or other high temperature 7807.187 HIGH TEMP. TAPE 12mm x 33m
production processes. Silicone adhesive 7807.189 HIGH TEMP. TAPE 19mm x 33m
protection without leaving a residue 7807.190 HIGH TEMP. TAPE 25mm x 33m
7807.191 HIGH TEMP. TAPE 40mm x 33m
Length: 33m 7807.192 HIGH TEMP. TAPE ESD 6mm x 33m
Diameter: 75mm 7807.193 HIGH TEMP. TAPE ESD 9mm x 33m
Thickness: 0.06mm (2.3mil) 7807.194 HIGH TEMP. TAPE ESD 12mm x 33m
Temperature: 260°C maximum 7807.196 HIGH TEMP. TAPE ESD 19mm x 33m

SOLDER MASKING PASTE

It is a good quality latex compound, ESD safe, designed
to protect parts of the PC boards during the soldering

produc on processes. Once cured, the paste will not li
or separate during soldering, it is excep onally cohesive,

generally peeling off in one piece. It is also suitable for use

as a conformal coa ng.

Mask can be applied using robo c, pneuma c, hand appli-
cators, brush and template screening.
Curing at normal temperature: 40 to 60 min
Curing at 60°C: 15 to 25 min
Colour: white
Smell: light ammonia 7805.916 Solder masking paste - 215g squeeze bo le
Resistance Rs & Rv: <10 Ω 7805.918 Solder masking paste - 5kg in plas c
10
Shelf life at 22°C: 6 months
SOLVENT CLEANING Safe and effec ve cleaning of electronic and electrical components, screens and

stencils, specially designed to remove most flux residues including “no-cleans” a er

touch-up and rework applica ons. Safe to use on most plas cs and rubber, this

solvent dries extremely quickly and leave no residues.
Cleaning: by immersion or with brush
Composi on: hydrocarbon solvent blend, alipha c alcohol and methylal.

Flash point: -21°C (highly flammable)
7805.929 Electronic cleaning solvent - 1litre can
7805.930 Electronic cleaning solvent - 5litre can
BRUSHES

310 Conven onal brushes can generate high charges in use, they are therefore unsuitable

for cleaning ESD sensi ve assemblies. Nonetheless it is necessary to remove solder
flux and other dirt par cularly in SMD assembly where there are high densi es of

308 components.

A range of conduc ve brushes allows thorough cleaning without the risk of genera ng

sta c charges. The brush consists of a conduc ve plas c handle and conduc ve fibres.
8

296 Resistance from the p of the brush to the handle is less than 1x10 Ω.
Brushes should be used by operators who are earthed. Hard brushes are for scrubbing

whilst so ones are for brushing of delicate items such as op cs and diske es.
298 7807.296 Hard brush 20x70mm (open nail type)
7807.298 Hard block 40x150mm (closed nail type)
7807.301 Hard brush 9x32mm
301 7807.302 Flat hard brush 12mm
7807.304 Flat hard brush 25mm
304 7807.308 Flat so brush 100mm
7807.310 Flat so brush with handle 130mm
302
