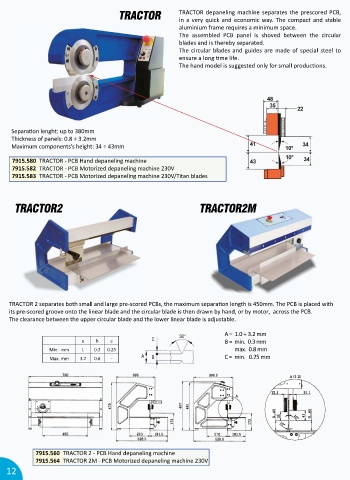

Page 12 - ITECO Catalogue 2024

TRACTOR TRACTOR depaneling machine separates the prescored PCB,
in a very quick and economic way. The compact and stable
aluminium frame requires a minimum space.
The assembled PCB panel is shoved between the circular
blades and is thereby separated.
The circular blades and guides are made of special steel to

ensure a long me life.
The hand model is suggested only for small produc ons.

Separa on lenght: up to 380mm
Thickness of panels: 0.8 ÷ 3.2mm
Maximum components’s height: 34 ÷ 43mm
7915.580 TRACTOR - PCB Hand depaneling machine
7915.582 TRACTOR - PCB Motorized depaneling machine 230V
7915.583 TRACTOR - PCB Motorized depaneling machine 230V/Titan blades

TRACTOR2 TRACTOR2M

TRACTOR 2 separates both small and large pre-scored PCBs, the maximum separa on length is 450mm. The PCB is placed with
its pre-scored groove onto the linear blade and the circular blade is then drawn by hand, or by motor, across the PCB.
The clearance between the upper circular blade and the lower linear blade is adjustable.

A = 1.0 ÷ 3.2 mm
a b c B = min. 0.3 mm
Min. mm 1 0.3 0.25 max. 0.8 mm
Max. mm 3.2 0.8 - C = min. 0.25 mm

7915.560 TRACTOR 2 - PCB Hand depaneling machine
7915.564 TRACTOR 2M - PCB Motorized depaneling machine 230V
