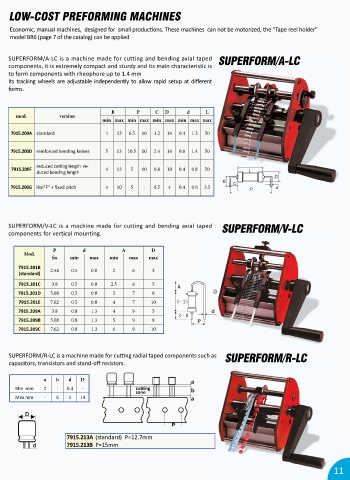

Page 11 - ITECO Catalogue 2024

LOW-COST PREFORMING MACHINES

Economic, manual machines, designed for small produc ons. These machines can not be motorized, the "Tape reel holder"
model BR6 (page 7 of the catalog) can be applied

SUPERFORM/A-LC is a machine made for cutting and bending axial taped SUPERFORM/A-LC
components, it is extremely compact and sturdy and its main characteris c is
to form components with rheophore up to 1.4 mm
Its tracking wheels are adjustable independently to allow rapid setup at diff erent
forms.

B P C D d L
mod. version
min max min max min max min max max
7915.200A standard 4 13 6.5 60 1.2 16 0.4 1.3 50

7915.200D reinforced bending knives 5 13 10.5 60 2.4 16 0.6 1.4 50

reduced cu ng length re-
7915.200F 4 13 5 60 0.8 10 0.4 0.8 50
duced bending length
7915.200G like"F" + fi xed pitch 4 10 5 - 0.5 4 0.4 0.6 3.5

SUPERFORM/V-LC is a machine made for cutting and bending axial taped SUPERFORM/V-LC
components for vertical mounting.

P d A D
Mod.
fi x min max min max max
7915.201B 2.54 0.5 0.8 2 6 3
(standard)
7915.201C 3.8 0.5 0.8 2.5 6 5
7915.201D 5.08 0.5 0.8 3 7 8
7915.201E 7.62 0.5 0.8 4 7 10
7915.209A 3.8 0.8 1.3 4 9 5
7915.209B 5.08 0.8 1.3 5 9 8
7915.209C 7.62 0.8 1.3 6 9 10

SUPERFORM/R-LC is a machine made for cu ng radial taped components such as SUPERFORM/R-LC

capacitors, transistors and stand-off resistors.
a b d D

Min mm 2 - 0.4 - cu ng
zone
Max mm - 8 1 14

7915.213A (standard) P=12.7mm
7915.213B P=15mm

11
