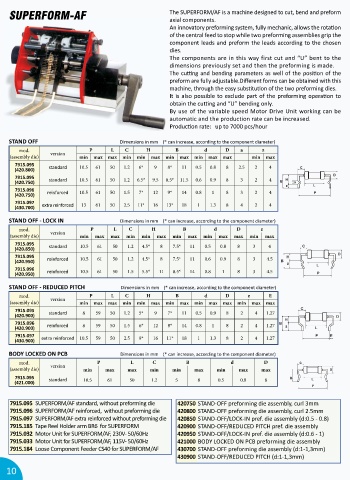

SUPERFORM-AF The SUPERFORM/AF is a machine designed to cut, bend and preform
axial components.
An innovatory preforming system, fully mechanic, allows the rota on
of the central feed to stop while two preforming assemblies grip the
component leads and preform the leads according to the chosen
dies.
The components are in this way first cut and “U” bent to the
dimensions previously set and then the preforming is made.

The cu ng and bending parameters as well of the posi on of the

preform are fully adjustable.Different forms can be obtained with this
machine, through the easy subs tu on of the two preforming dies.

It is also possible to exclude part of the preforming opera on to

obtain the cu ng and “U” bending only.
By use of the variable speed Motor Drive Unit working can be
automatic and the production rate can be increased.

Produc on rate: up to 7000 pcs/hour
STAND OFF Dimensions in mm (* can increase, according to the component diameter)
mod. P L C H B d D a z
version
(assembly die) min max max min min max min max min max max min max
7915.095
(420.800) standard 10.5 61 50 1.2 6* 9 8* 11 0.5 0.8 8 2.5 2 4
7915.095 10.5 61 50 1.2 6.5* 9.5 8.5* 11.5 0.6 0.9 8 3 2 4
(420.750) standard
7915.096
(420.750) reinforced 10.5 61 50 1.5 7* 12 9* 14 0.8 1 8 3 2 4
7915.097
(430.700) extra reinforced 13 61 50 2.5 11* 16 13* 18 1 1.3 8 4 2 4
STAND OFF - LOCK IN Dimensions in mm (* can increase, according to the component diameter)
mod. P L C H B d D z
(assembly die) version min max max min min max min max min max max min max
7915.095
(420.850) standard 10.5 61 50 1.2 4.5* 8 7.5* 11 0.5 0.8 8 3 4
7915.095
(420.950) reinforced 10.5 61 50 1.2 4.5* 8 7.5* 11 0.6 0.9 8 3 4.5
7915.096
(420.950) reinforced 10.5 61 50 1.5 5.5* 11 8.5* 14 0.8 1 8 3 4.5

STAND OFF - REDUCED PITCH Dimensions in mm (* can increase, according to the component diameter)
mod. P L C H B d D z E
(assembly die) version min max max min min max min max min max max min max max
7915.095 standard 8 59 50 1.2 5* 9 7* 11 0.5 0.9 8 2 4 1.27
(420.900)
7915.096 reinforced 8 59 50 1.5 6* 12 8* 14 0.8 1 8 2 4 1.27
(420.900)
7915.097 extra reinforced 10.5 59 50 2.5 9* 16 11* 18 1 1.3 8 2 4 1.27
(430.900)

BODY LOCKED ON PCB Dimensions in mm (* can increase, according to the component diameter)
mod. P L C B d D
(assembly die) version min max max min min max min max max
7915.095
(421.000) standard 10.5 61 50 1.2 5 8 0.5 0.8 8

7915.095 SUPERFORM/AF standard, without preforming die 420750 STAND-OFF preforming die assembly, curl 3mm
7915.096 SUPERFORM/AF reinforced, without preforming die 420800 STAND-OFF preforming die assembly, curl 2.5mm
7915.097 SUPERFORM/AF extra reinforced without preforming die 420850 STAND-OFF/LOCK-IN pref. die assembly (d:0.5 - 0.8)
7915.185 Tape Reel Holder arm BR6 for SUPERFORM 420900 STAND-OFF/REDUCED PITCH pref. die assembly
7915.032 Motor Unit for SUPERFORM/AF, 230V- 50/60Hz 420950 STAND-OFF/LOCK-IN pref. die assembly (d:0.6 - 1)
7915.033 Motor Unit for SUPERFORM/AF, 115V- 50/60Hz 421000 BODY LOCKED ON PCB preforming die assembly
7915.184 Loose Component Feeder CS40 for SUPERFORM/AF 430700 STAND-OFF preforming die assembly (d:1-1,3mm)
430900 STAND-OFF/REDUCED PITCH (d:1-1,3mm)
