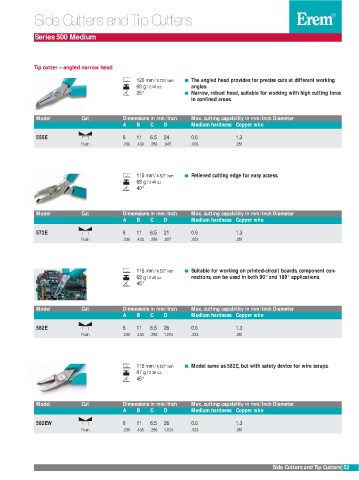

Side Cutters and Tip Cutters

Series 500 Medium

Tip cutter – angled narrow head
120 mm/ 4.724 Inch The angled head provides for precise cuts at different working
68 g / 2.40 oz. angles.
35° Narrow, robust head, suitable for working with high cutting force
in confined areas.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

555E 6 11 6.5 24 0.6 1.3
Flush .236 .433 .256 .945 .023 .051

115 mm/ 4.527 Inch Relieved cutting edge for easy access.
68 g / 2.40 oz.
40°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

572E 6 11 6.5 21 0.6 1.3
Flush .236 .433 .256 .827 .023 .051

115 mm/ 4.527 Inch Suitable for working on printed-circuit boards, component con-
68 g / 2.40 oz. nections, can be used in both 90° and 180° applications.
45°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire
582E 6 11 6.5 26 0.6 1.3
Flush .236 .433 .256 1.024 .023 .051

115 mm/ 4.527 Inch Model same as 582E, but with safety device for wire scraps.
67 g / 2.36 oz.
45°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

582EW 6 11 6.5 26 0.6 1.3
Flush .236 .433 .256 1.024 .023 .051

Side Cutters and Tip Cutters 53
