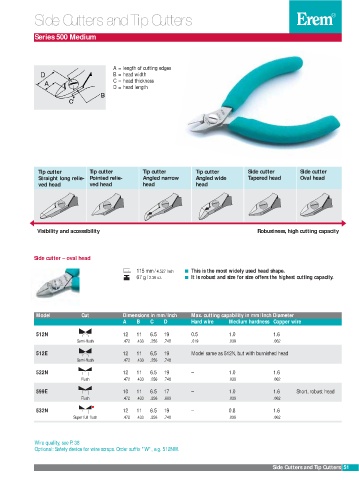

Side Cutters and Tip Cutters

Series 500 Medium

A = length of cutting edges
D B = head width
C = head thickness
D = head length

Tip cutter Tip cutter Tip cutter Tip cutter Side cutter Side cutter
Straight long relie- Pointed relie- Angled narrow Angled wide Tapered head Oval head
ved head ved head head head

Visibility and accessibility Robustness, high cutting capacity

Side cutter – oval head

115 mm/ 4.527 Inch This is the most widely used head shape.
67 g / 2.36 oz. It is robust and size for size offers the highest cutting capacity.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Hard wire Medium hardness Copper wire

512N 12 11 6.5 19 0.5 1.0 1.6
Semi-flush .472 .433 .256 .748 .019 .039 .062

512E 12 11 6,5 19 Model same as 512N, but with burnished head
Semi-flush .472 .433 .256 .748
522N 12 11 6.5 19 – 1.0 1.6
Flush .472 .433 .256 .748 .039 .062
599E 10 11 6.5 17 – 1.0 1.6 Short, robust head
Flush .472 .433 .256 .669 .039 .062
532N 12 11 6.5 19 – 0.8 1.6
Super full flush .472 .433 .256 .748 .039 .062

Wire quality, see P. 38
Optional: Safety device for wire scraps. Order suffix "W“, e.g. 512NW.

Side Cutters and Tip Cutters 51
