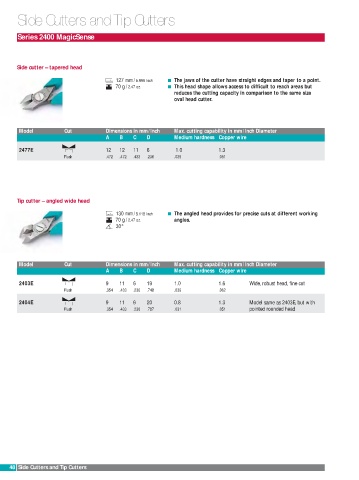

Side Cutters and Tip Cutters

Series 2400 MagicSense

Side cutter – tapered head
127 mm/ 5.999 Inch The jaws of the cutter have straight edges and taper to a point.
70 g / 2.47 oz. This head shape allows access to difficult to reach areas but
reduces the cutting capacity in comparison to the same size
oval head cutter.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire
2477E 12 12 11 6 1.0 1.3
Flush .472 .472 .433 .236 .039 .051

Tip cutter – angled wide head

130 mm/ 5.118 Inch The angled head provides for precise cuts at different working
70 g / 2.47 oz. angles.
30°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire
2403E 9 11 6 19 1.0 1.6 Wide, robust head, fine cut
Flush .354 .433 .236 .748 .039 .062
2404E 9 11 6 20 0.8 1.3 Model same as 2403E, but with
Flush .354 .433 .236 .787 .031 .051 pointed rounded head
