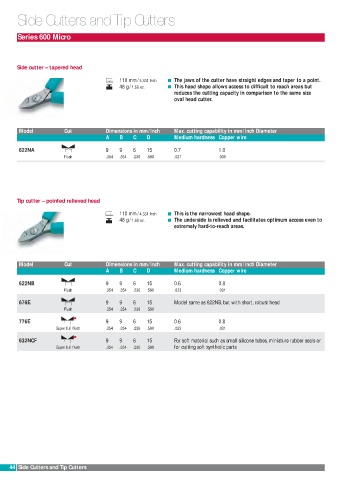

Side Cutters and Tip Cutters

Series 600 Micro

Side cutter – tapered head
110 mm/ 4.331 Inch The jaws of the cutter have straight edges and taper to a point.
48 g/ 1.69 oz. This head shape allows access to difficult to reach areas but
reduces the cutting capacity in comparison to the same size
oval head cutter.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire
622NA 9 9 6 15 0.7 1.0
Flush .354 .354 .236 .590 .027 .039

Tip cutter – pointed relieved head

110 mm/ 4.331 Inch This is the narrowest head shape.
48 g/ 1.69 oz. The underside is relieved and facilitates optimum access even to
extremely hard-to-reach areas.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire
622NB 9 9 6 15 0.6 0.8
Flush .354 .354 .236 .590 .023 .031
676E 9 9 6 15 Model same as 622NB, but with short, robust head
Flush .354 .354 .236 .590
776E 9 9 6 15 0.6 0.8
Super full flush .354 .354 .236 .590 .023 .031
632NCF 9 9 6 15 For soft material such as small silicone tubes, miniature rubber seals or
Super full flush .354 .354 .236 .590 for cutting soft synthetic parts

44 Side Cutters and Tip Cutters
