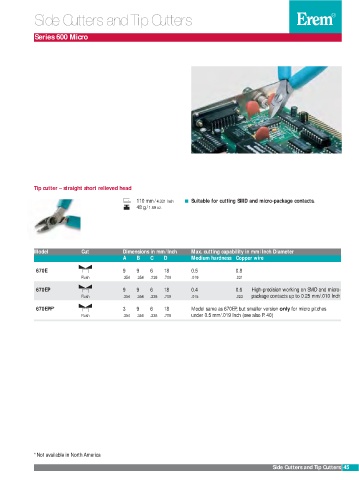

Page 44 - EREM katalógus

Side Cutters and Tip Cutters

Series 600 Micro

Tip cutter – straight short relieved head

110 mm/ 4.331 Inch Suitable for cutting SMD and micro-package contacts.
48 g/ 1.69 oz.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

670E 9 9 6 18 0.5 0.8
Flush .354 .354 .236 .709 .019 .031
670EP 9 9 6 18 0.4 0.6 High-precision working on SMD and micro-
Flush .354 .354 .236 .709 .015 .023 package contacts up to 0.25 mm/.010 Inch
670EPF* 3 9 6 18 Model same as 670EP, but smaller version only for micro pitches
Flush .354 .354 .236 .709 under 0.5 mm/.019 Inch (see also P. 40)

*Not available in North America
Side Cutters and Tip Cutters 45
