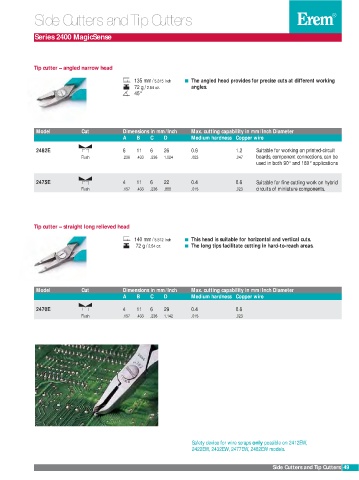

Page 48 - EREM katalógus

Side Cutters and Tip Cutters

Series 2400 MagicSense

Tip cutter – angled narrow head
135 mm/ 5.315 Inch The angled head provides for precise cuts at different working
72 g / 2.54 oz. angles.
45°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

2482E 6 11 6 26 0.6 1.2 Suitable for working on printed-circuit
Flush .236 .433 .236 1.024 .023 .047 boards, component connections, can be
used in both 90° and 180° applications

2475E 4 11 6 22 0.4 0.6 Suitable for fine cutting work on hybrid
Flush .157 .433 .236 .866 .015 .023 circuits of miniature components.

Tip cutter – straight long relieved head

140 mm/ 5.512 Inch This head is suitable for horizontal and vertical cuts.
72 g / 2.54 oz. The long tips facilitate cutting in hard-to-reach areas.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

2470E 4 11 6 29 0.4 0.6
Flush .157 .433 .236 1.142 .015 .023

Safety device for wire scraps only possible on 2412EW,
2422EW, 2432EW, 2477EW, 2482EW models.

Side Cutters and Tip Cutters 49
