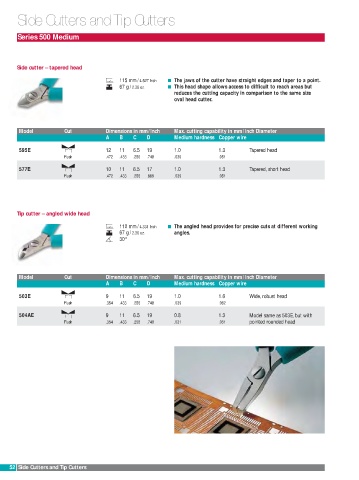

Side Cutters and Tip Cutters

Series 500 Medium

Side cutter – tapered head
115 mm/ 4.527 Inch The jaws of the cutter have straight edges and taper to a point.
67 g / 2.36 oz. This head shape allows access to difficult to reach areas but
reduces the cutting capacity in comparison to the same size
oval head cutter.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire
595E 12 11 6.5 19 1.0 1.3 Tapered head
Flush .472 .433 .256 .748 .039 .051
577E 10 11 6.5 17 1.0 1.3 Tapered, short head
Flush .472 .433 .256 .669 .039 .051

Tip cutter – angled wide head
110 mm/ 4.331 Inch The angled head provides for precise cuts at different working
67 g / 2.36 oz. angles.
30° 30°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

503E 9 11 6.5 19 1.0 1.6 Wide, robust head
Flush .354 .433 .256 .748 .039 .062

504AE 9 11 6.5 19 0.8 1.3 Model same as 503E, but with
Flush .354 .433 .256 .748 .031 .051 pointed rounded head

52 Side Cutters and Tip Cutters
