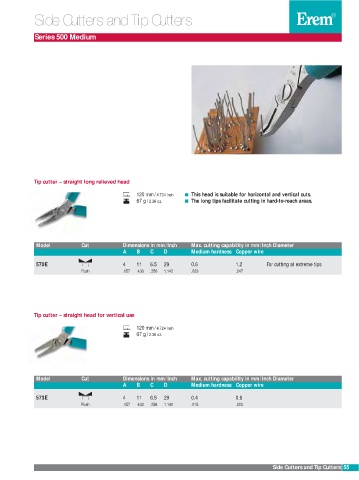

Page 54 - EREM katalógus

Side Cutters and Tip Cutters

Series 500 Medium

Tip cutter – straight long relieved head

120 mm/ 4.724 Inch This head is suitable for horizontal and vertical cuts.
67 g / 2.36 oz. The long tips facilitate cutting in hard-to-reach areas.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire
570E 4 11 6.5 29 0.6 1.2 For cutting at extreme tips
Flush .157 .433 .256 1.142 .023 .047

Tip cutter – straight head for vertical use

120 mm/ 4.724 Inch
67 g / 2.36 oz.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

573E 4 11 6.5 29 0.4 0.6
Flush .157 .433 .256 1.142 .015 .023

Side Cutters and Tip Cutters 55
