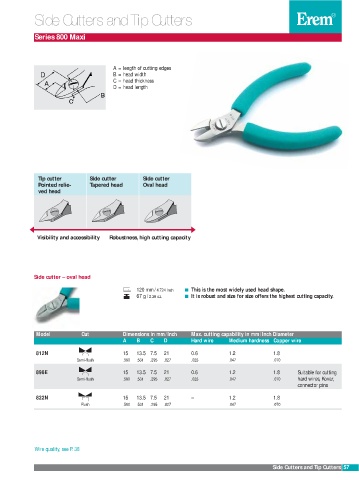

Side Cutters and Tip Cutters

Series 800 Maxi

A = length of cutting edges
D B = head width
C = head thickness
D = head length

Tip cutter Side cutter Side cutter
Pointed relie- Tapered head Oval head
ved head

Visibility and accessibility Robustness, high cutting capacity

Side cutter – oval head

120 mm/ 4.724 Inch This is the most widely used head shape.
67 g / 2.36 oz. It is robust and size for size offers the highest cutting capacity.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Hard wire Medium hardness Copper wire
812N 15 13.5 7.5 21 0.6 1.2 1.8
Semi-flush .590 .531 .295 .827 .023 .047 .070
896E 15 13.5 7.5 21 0.6 1.2 1.8 Suitable for cutting
Semi-flush .590 .531 .295 .827 .023 .047 .070 hard wires, Kovar,
connector pins

822N 15 13.5 7.5 21 – 1.2 1.8
Flush .590 .531 .295 .827 .047 .070

Wire quality, see P. 38
