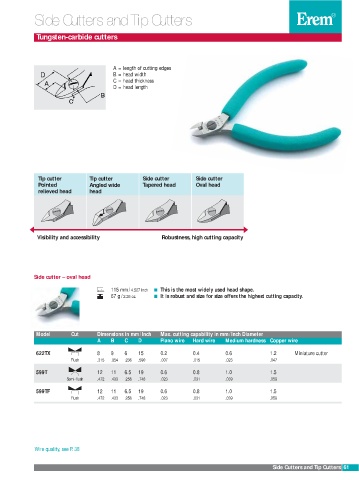

Page 60 - EREM katalógus

Side Cutters and Tip Cutters

Tungsten-carbide cutters

A = length of cutting edges
D B = head width
C = head thickness
D = head length

Tip cutter Tip cutter Side cutter Side cutter
Pointed Angled wide Tapered head Oval head
relieved head head

Visibility and accessibility Robustness, high cutting capacity

Side cutter – oval head

115 mm/ 4.527 Inch This is the most widely used head shape.
67 g / 2.36 oz. It is robust and size for size offers the highest cutting capacity.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Piano wire Hard wire Medium hardness Copper wire
622TX 8 9 6 15 0.2 0.4 0.6 1.2 Miniature cutter
Flush .315 .354 .236 .590 .007 .015 .023 .047
599T 12 11 6.5 19 0.6 0.8 1.0 1.5
Semi-flush .472 .433 .256 .748 .023 .031 .039 .059
599TF 12 11 6.5 19 0.6 0.8 1.0 1.5
Flush .472 .433 .256 .748 .023 .031 .039 .059

Wire quality, see P. 38
