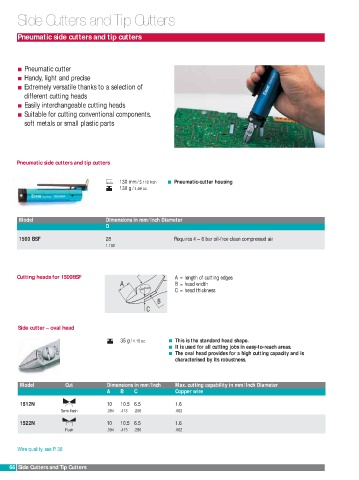

Page 65 - EREM katalógus

Side Cutters and Tip Cutters

Pneumatic side cutters and tip cutters

Pneumatic cutter
Handy, light and precise
Extremely versatile thanks to a selection of
different cutting heads
Easily interchangeable cutting heads
Suitable for cutting conventional components,
soft metals or small plastic parts

Pneumatic side cutters and tip cutters

130 mm/ 5.118 Inch Pneumatic-cutter housing
130 g / 4.59 oz.

Model Dimensions in mm/Inch Diameter
D

1500 BSF 28 Requires 4 – 6 bar oil-free clean compressed air
1.102

Cutting heads for 1500BSF A = length of cutting edges
A B = head width
C = head thickness
B
C

Side cutter – oval head

35 g / 1.16 oz. This is the standard head shape.
It is used for all cutting jobs in easy-to-reach areas.
The oval head provides for a high cutting capacity and is
characterised by its robustness.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C Copper wire

1512N 10 10.5 6.5 1.6
Semi-flush .394 .413 .256 .062

1522N 10 10.5 6.5 1.6
Flush .394 .413 .256 .062

Wire quality, see P. 38

66 Side Cutters and Tip Cutters
